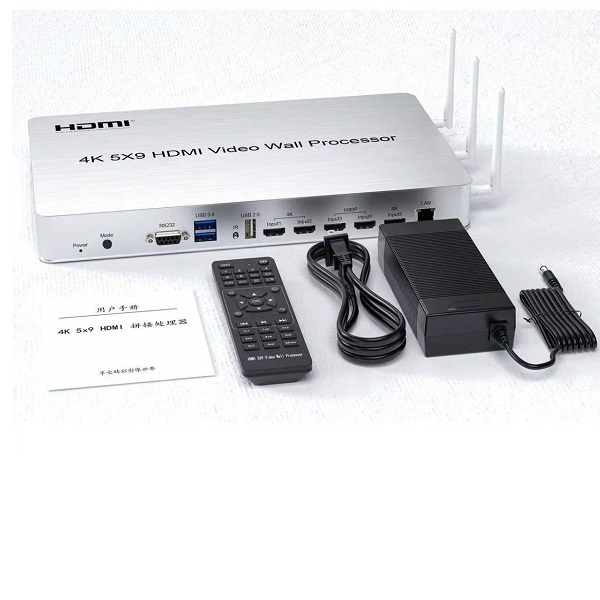

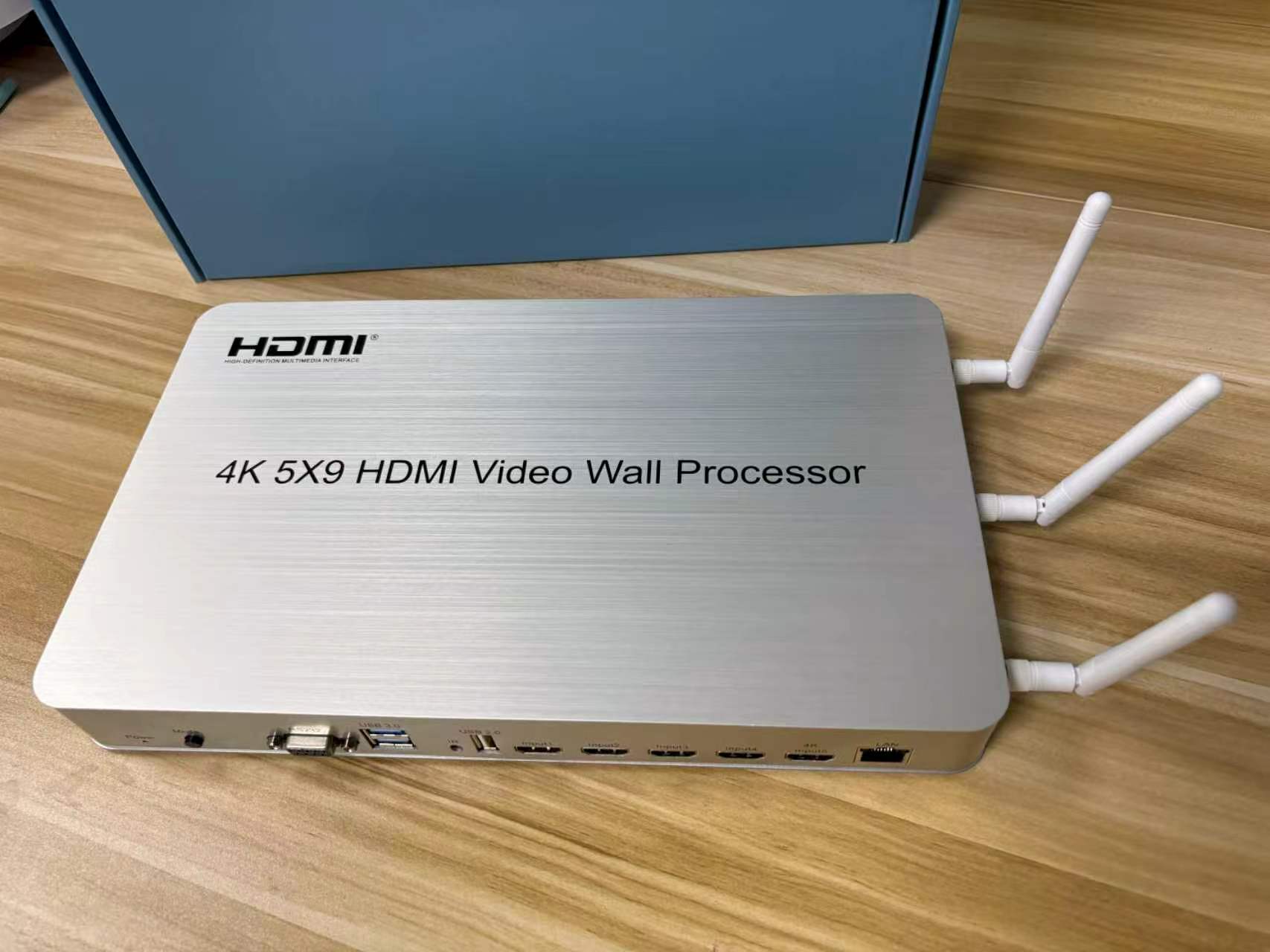

The 5×9 video wall controller support 5 way HDMI input,9 way HDMI output,the main function is to divide a complete HDMI HD image signal into 9 pieces and then be assigned to 9 video display unit((such as Rear projection unit, LCD TV, etc).Complete with 9 HDMI high-definition video display units to form a large dynamic image screen. At the same time, the 5-way HDMI HD signal can be displayed on the screen, and has a variety of video segmentation effects. It is mainly used in ultra-high definition video surveillance, large screen wall, store advertising screen, exhibition screen and other industry applications.
FEATURE:

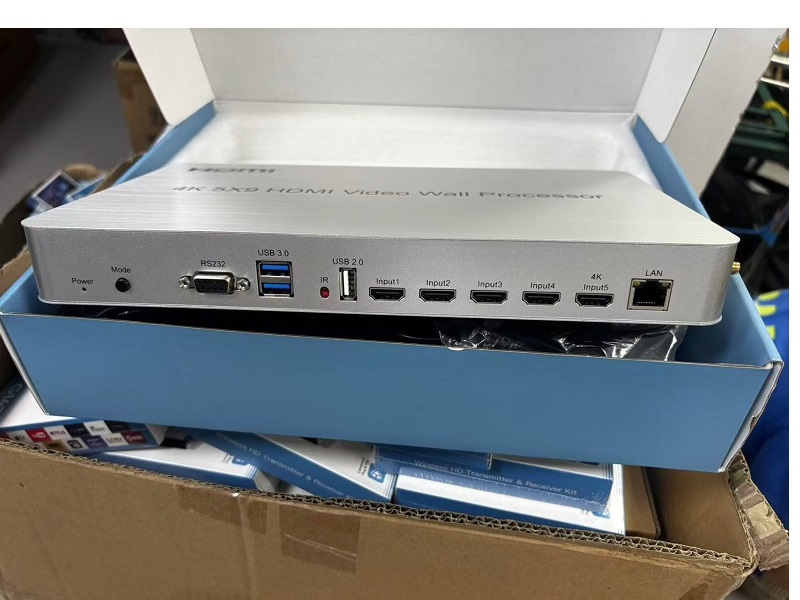

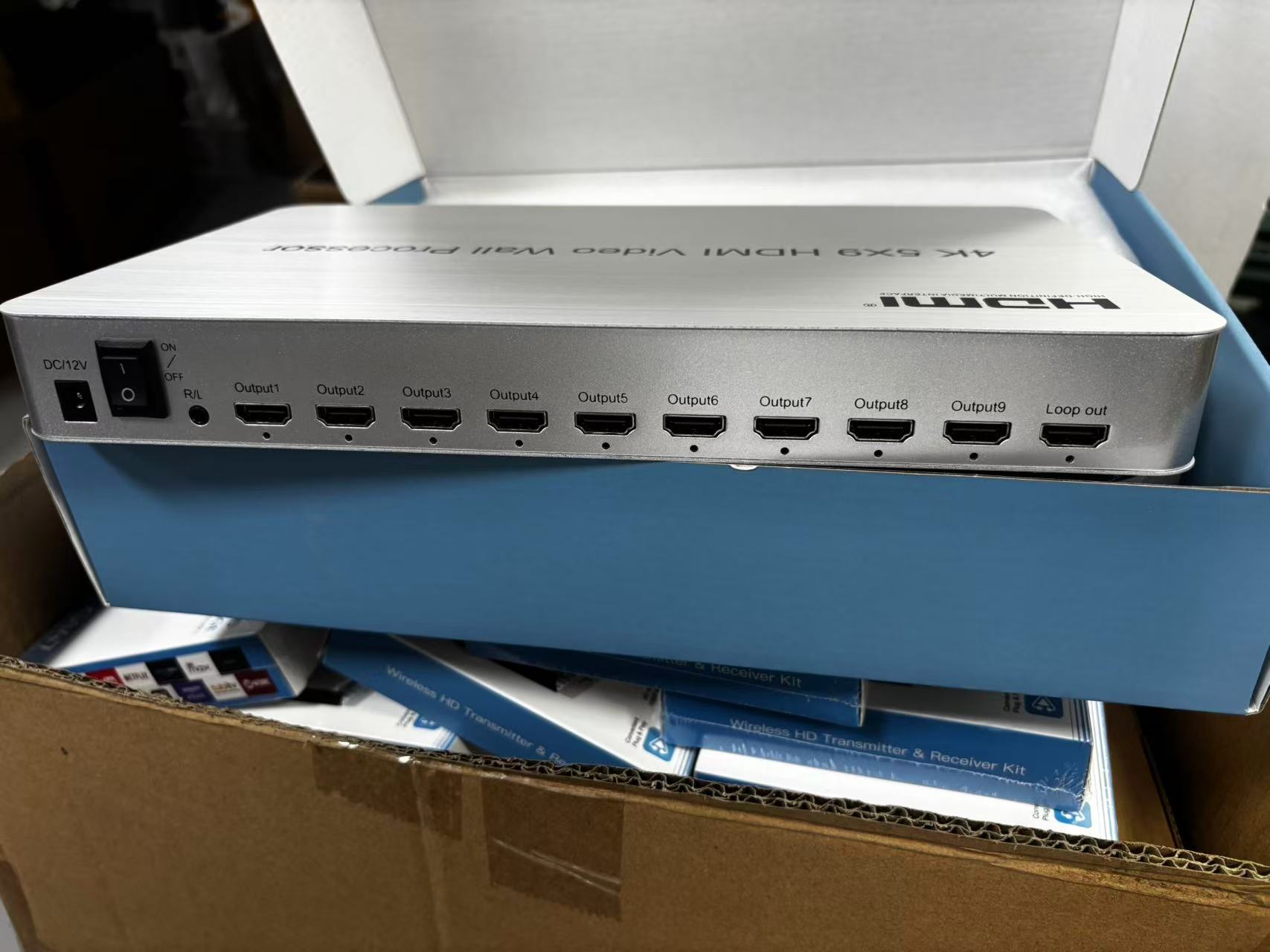

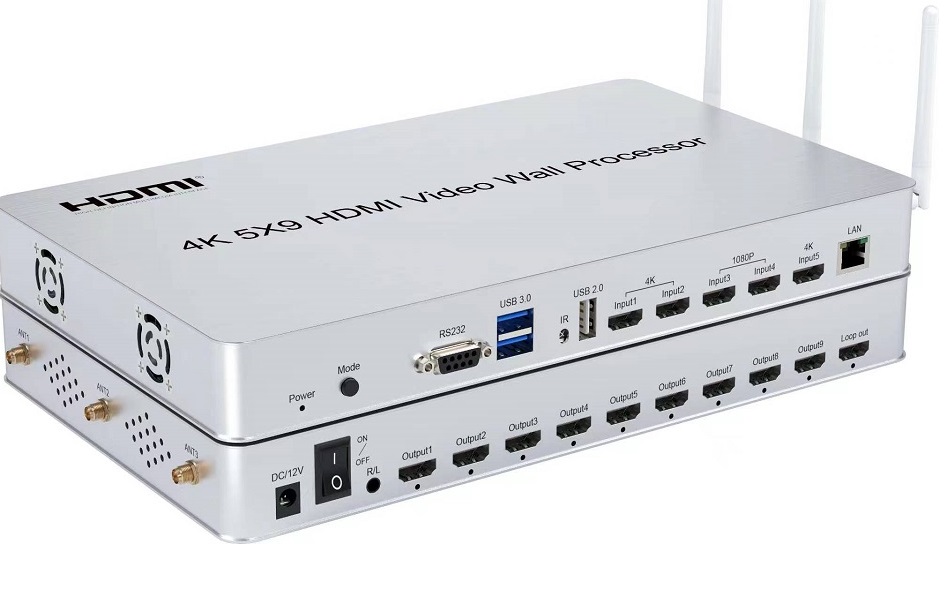

* Supports 5 HDMI inputs (3way 4k@30hz, 2way 1080P), 9 HDMI outputs (1080p@60hz), 1 HDMI loop out (picture is consistent with the splicing picture), one 3.5mm headphones stereo output. * Various splicing modes: horizontal / vertical.
* Support a variety of segmentation modes (PIP, POP, PBP, Single picture, dual pictures, four pictures segmentation). Each split screen can be moved and zoomed in and out independently (Put mouse on top left, drag by the left key to zoom in/out the picture). Click the lower right corner of the screen to switch the sound.

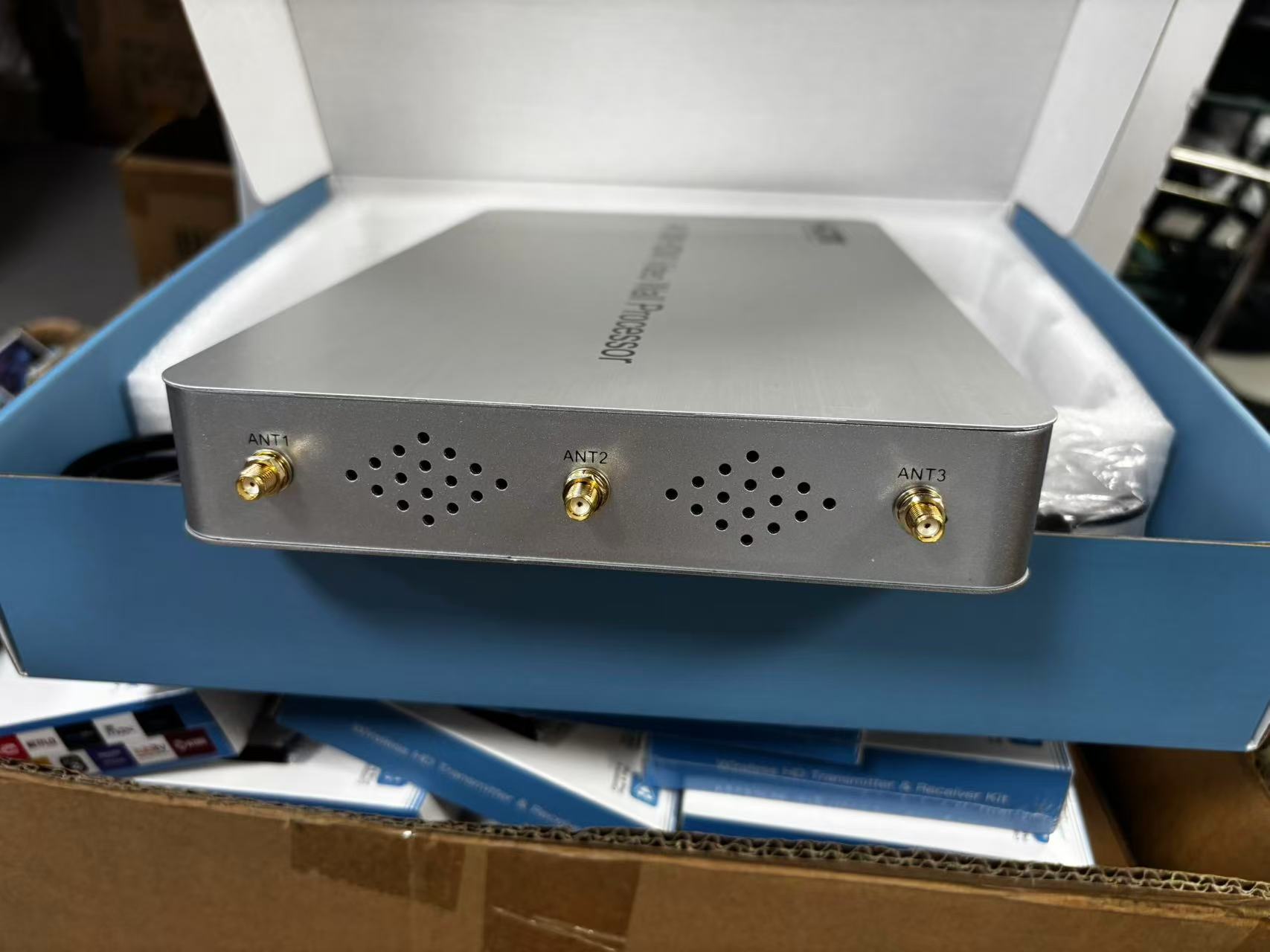

* Support Wifi and Bluetooth.
* No stretching, no deformation, no need to compress the input source, the picture is clear.
