Outline

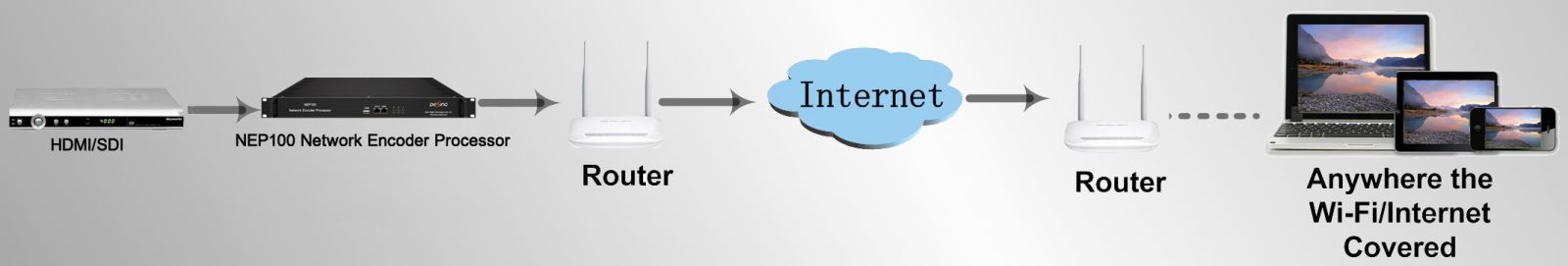

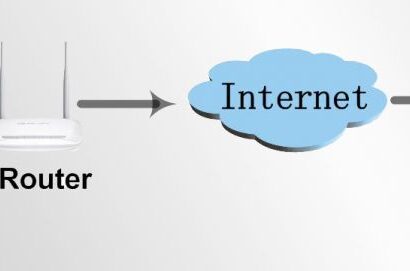

NEP100 network encoder processor is an IP broadcasting device with multiple inputs (HDMI/SDI) which can convert the input programs into IP format and send to terminals through the internet/LAN.

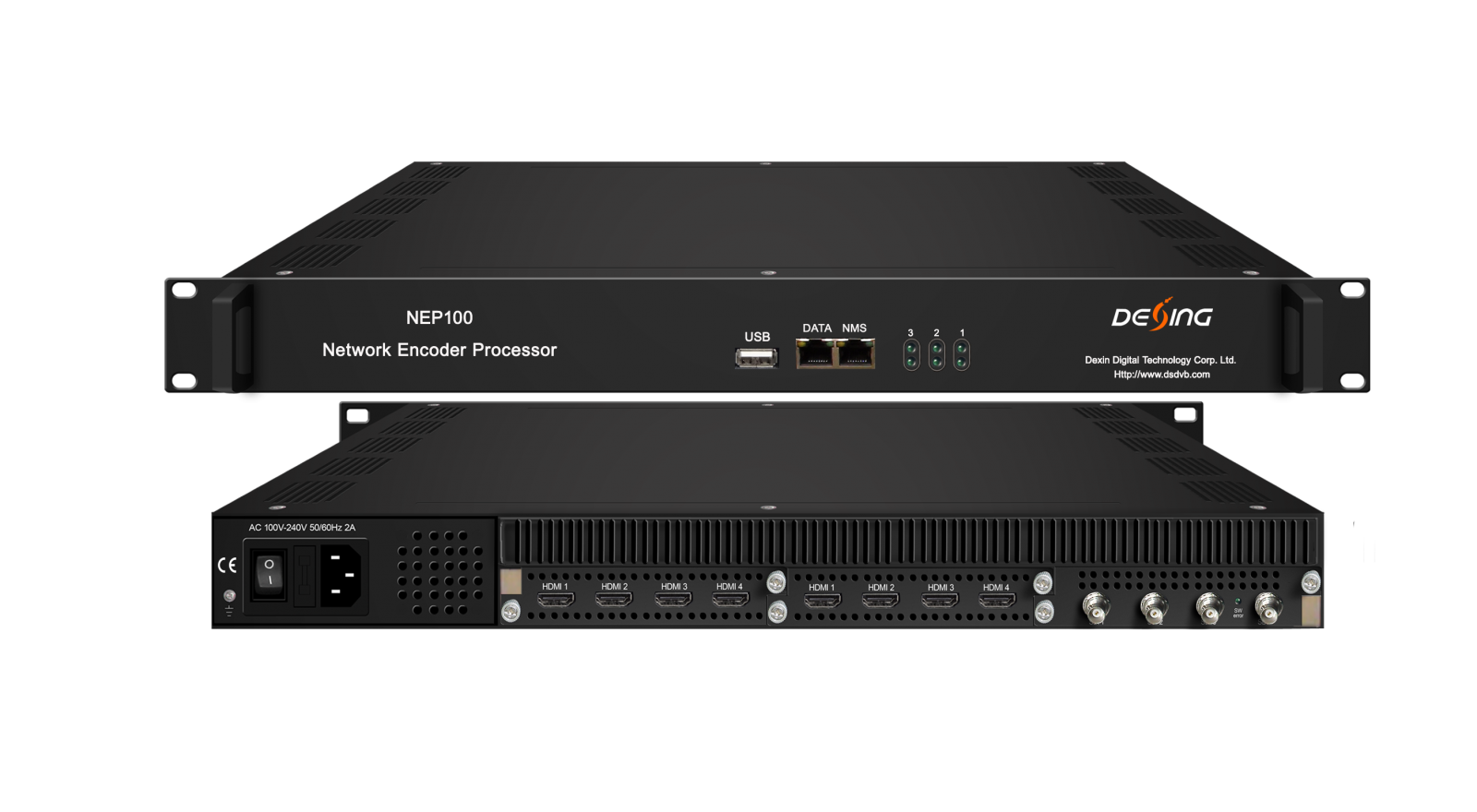

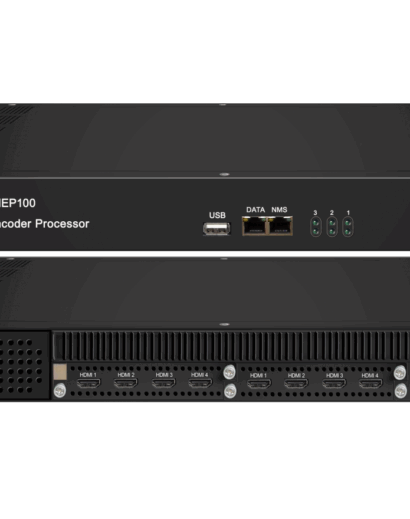

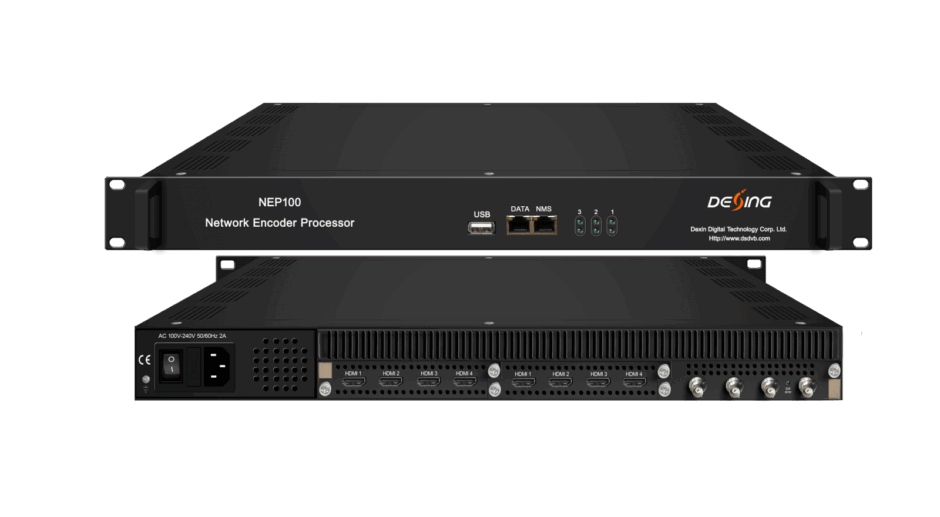

This 1-U chassis comes with 3 slots which allow loading different encoder modules with different interfaces and video formats.
Key Features
* Modular design, 1U chassis with 3 slots
* Support flexible combination of encoding modules, up to 12 HD programs inputs
* HDMI/SDI modules available, HEVC/MPEG4 video format for option
* 1 GE port with maximum 180Mbps data processing and output
* IP out over UDP (SPTS) (Unicast/Multicast), RTP (Unicast/Multicast), RTSP (Unicast), RTMP (Unicast), HTTP(Unicast), HLS (Unicast); RTMP only works under H. 264 video format and AAC audio format
RTSP/RTMP/HTTP/HLS support each ch video bitrate max: 8Mbps
UDP/RTP support each ch video bitrate max: 12Mbps
* Support Web management, Upgrade via USB port
