Product Overview

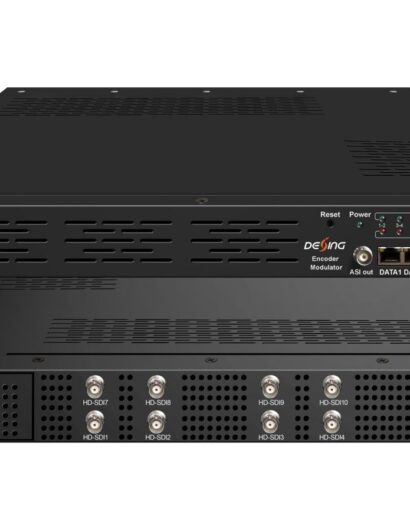

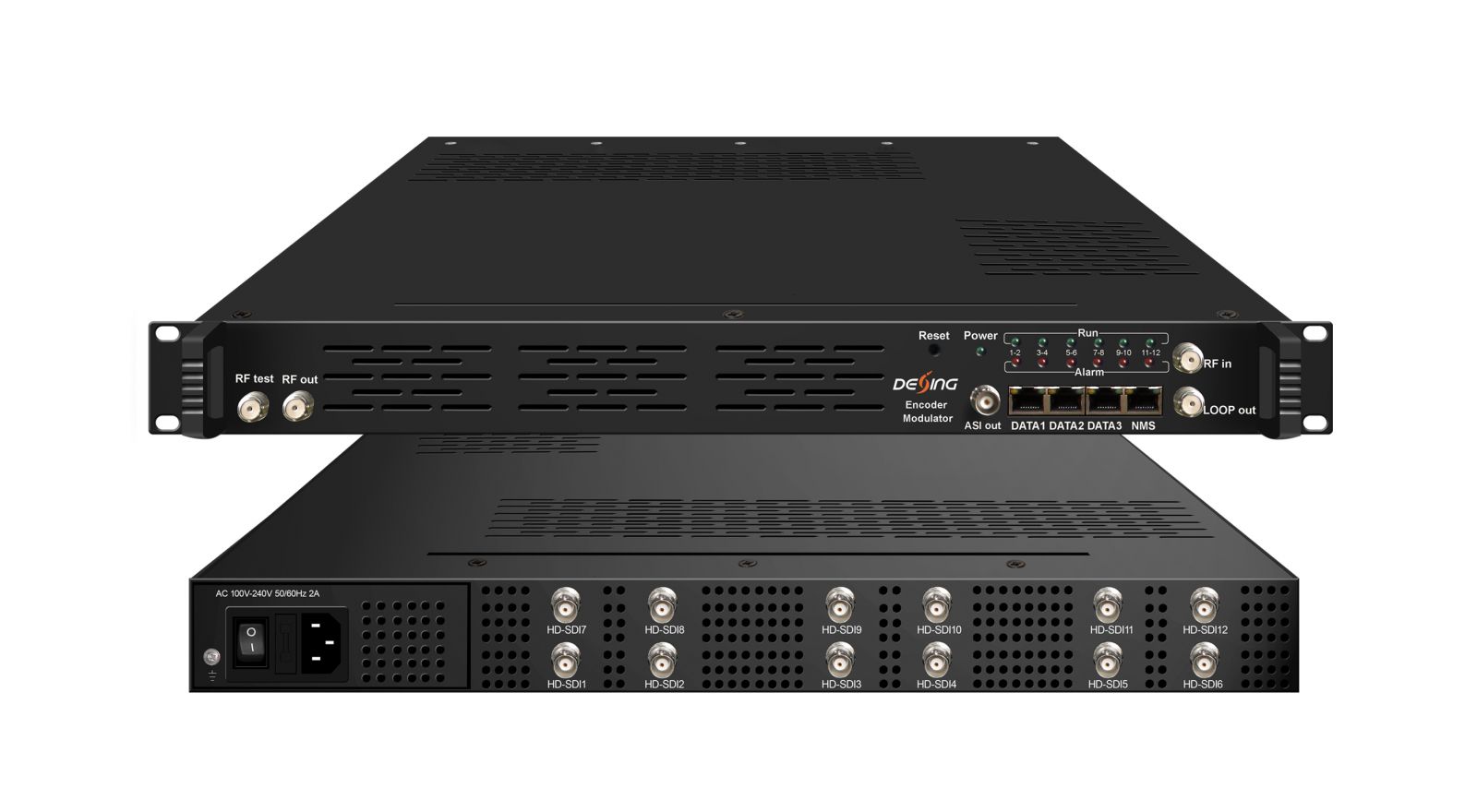

NDS3544MD HD encoder modulator is a professional high integration device which includes encoding, multiplexing, scrambling and modulating. It supports 12 HD-SDI with CC inputs, one DVB-C tuner input and maximum 512 IP input through Data1 (GE) port. It also supports DVB-C RF out with 16 non-adjacent carries or DVB-T RF out with 8 non-adjacent carriers and supports 16 MPTS as mirror of 16 carriers or 8 MPTS as mirror of 8 carriers through Data2 (GE) output port. To meet customers’ various requirements, it is also equipped with 1 ASI output (Optional) as mirror of one of MPTS.
Key Features
* 12 HD-SDI inputs with MPEG2 & MPEG4 AVC/H.264 Encoding
* 1DVB-C(ATSC optional) tuner input for re-mux
* Each carrier out channel process maximum 32 IP from DATA1 input port (UDP&RTP protocol)
* MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC, Dolby Digital AC3 (2.0) encoding (Optional), AC3 (2.0/5.1) passthrough
* Support 16 groups multiplexing/Scrambling/DVB-C modulating
* Support 8 groups multiplexing/DVB-T/ATSC modulating—Optional
* Support 6 groups multiplexing/ISDB-T modulating—Optional
* Support 1 ASI out as mirror of one of RF output carriers—Optional
* Support 16 MPTS IP (DATA2 port only) output over UDP, RTP/RTSP
* Support 8 MPTS IP (DATA2 port only) output over UDP, RTP/RTSP– DVB-T/ATSC RF out
* Support 6 MPTS IP (DATA2 port only) output over UDP, RTP/RTSP– ISDB-T RF out
* Support PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting
* Control via web management, and easy updates via web
