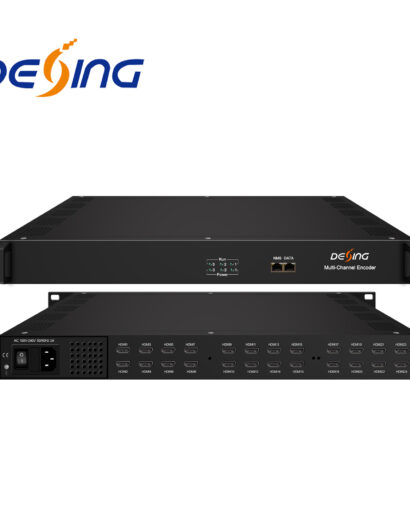

NDS3544K Multi-Channel Encoder

Product Overview

NDS3544K Multi-Channel Encoder is the new broadcasting audio & video encoding and multiplexing device with powerful functionality. It is equipped with 12 HDMI audio & video input interfaces, 12 CC input ports (Closed Caption) and 32 IP input over UDP and RTP through Data1.

It supports both MPEG-2 and MPEG-4 AVC/H.264 HD/SD video encoding and MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC, Dolby Digital AC3 (2.0) audio encoding (Optional), and AC3 (2.0/5.1) pass through. Its high integration and cost-effective design make this device widely used in variety of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV, etc.

Key features

* 12 HDMI inputs with MPEG2 & MPEG4 AVC/H.264 HD/SD Encoding

* Support 12 channel CC(Closed Caption) input

* MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC, Dolby Digital AC3 (2.0) encoding (Optional), AC3 (2.0/5.1) passthrough

* Support 32 IP input(Data 1 port) over UDP and RTP

* Support 1 MPTS and 12 SPTS IP ( DATA 1 and DATA2) output over UDP, RTP/RTSP

* Support ASI output as mirror of MPTS-Optional

* Support PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting

* Control via web management, and easy updates via web
