Product Overview

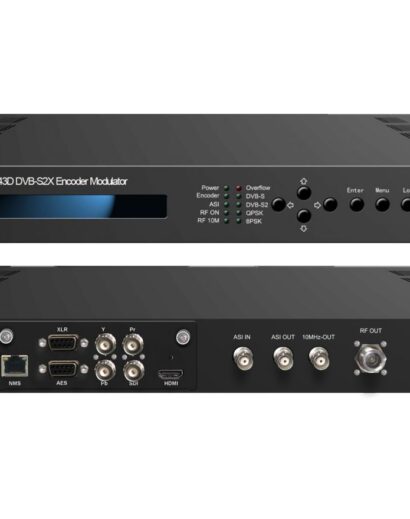

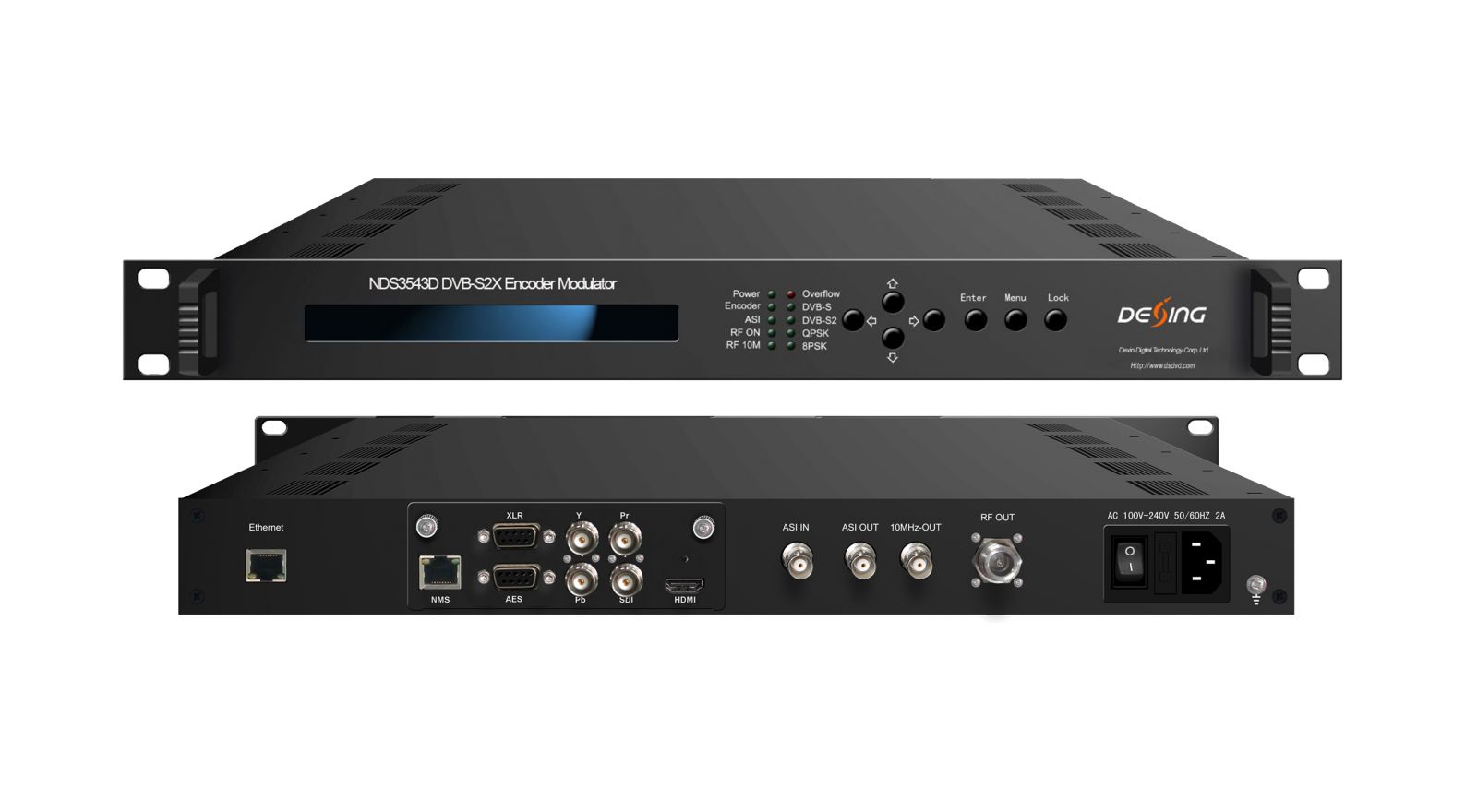

NDS3543D DVB-S/S2/S2X Encoder & Modulator is an integrated device with multifunction. Its pluggable design makes it convenient to change encoding module (SDI/HDMI/YPbPr/CVBS…) as needed. It is also equipped with 1ASI input for re-mux and modulation.
The signal source could be from CCTV cameras, Blue-ray players and etc. It adopts user-friendly web-based operation interface to effectively manage the device and carefully protect your content with its BISS function. Featured with its high performance and low cost, NDS3543D is especially adequate for the TV station or DSNG system to encode SD/HD programs and output to uplink.
Key Features
* HEVC/H.265, MPEG-4 AVC/H.264, MPEG2 SD/HD Encoding Module optional
* SDI/HDMI/YPbPr/ CVBS…in & 1*ASI in
* Multiple channel audio inputs optional
* Support DVB-S/S2/S2X RF output (950-2150MHz) and ASI output
* QPSK, 8PSK, 8APSK, 16APSK, 32APSK Constellations
* Support RF CID setting
* Support RF 24V power output
* Support Low latency
* Support BISS function
* Support 10MHz reference clock
* Support Web NMS and front panel LCD & Keyboard control
* Upgrade device through web NMS
