Product Overview
NDS3542H/HA encoder modulator is a professional high integration device which includes encoding, multiplexing, scrambling and modulation. It supports 8 to 24 CVBS inputs, one DVB-C/ T/(T)/ISDBT tuner input and 128 IP input through Data1 (GE) and Data2 (FE) port. It also supports DVB-C/T RF out with 4 adjacent carries, and supports 4 MPTS out thru Data1 (GE). This full function device makes it ideal for small CATV head end system, and it’s a smart choice for hotel TV system, entertainment system in sports bar, hospital, apartment…
Key features

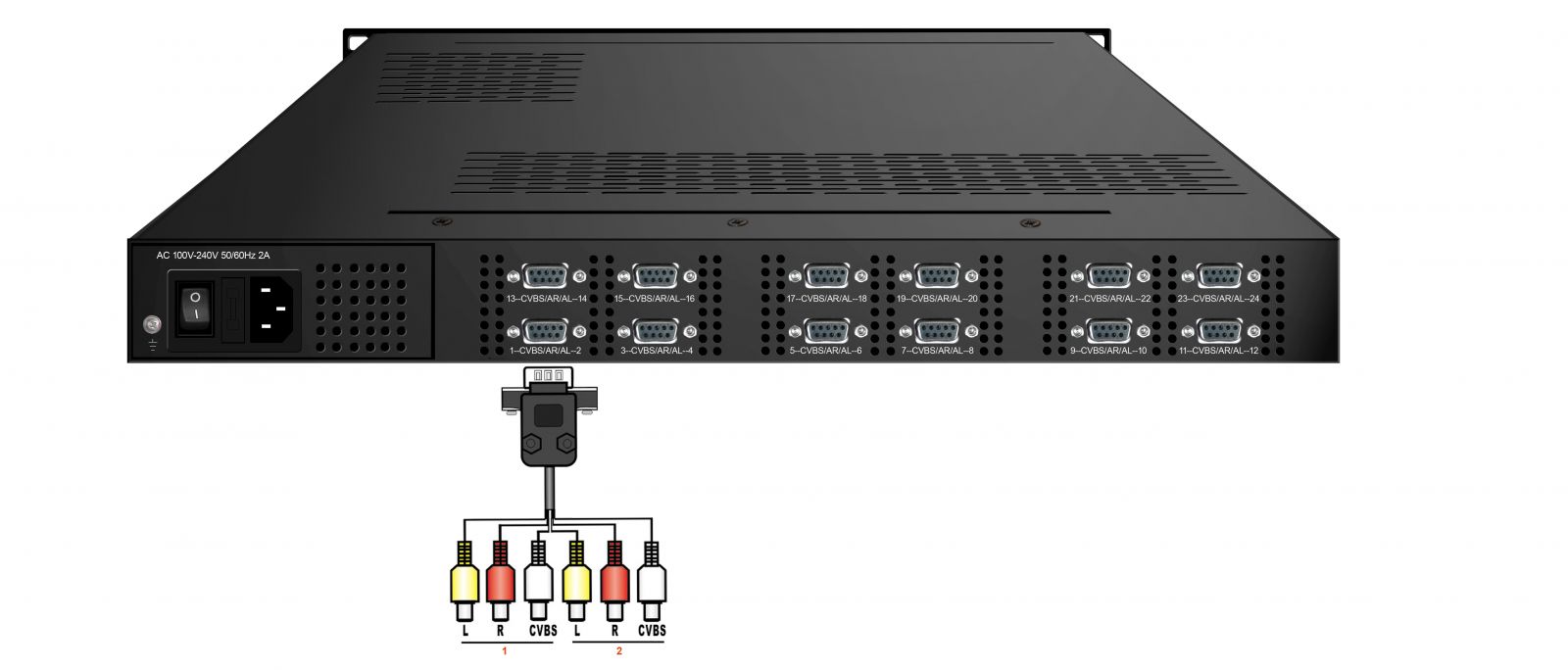

* 8/12/16/20/24 A/V inputs with MPEG2 Encoding
* MPEG1 Layer II, AC3(2.0) Audio encoding and support audio gain adjustment
* 1 DVB-C/T/(T)/ISDBT tuner input for re-mux (For DVB-C RF out version. Suitable for India market.)
* 128 IP input over UDP and RTP protocol
* 4 groups of multiplexing/scrambling/modulation output channels
* Support PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting
* Support 4 MPTS IP (DATA1 port only) output over UDP and RTP
* Support 4 DVB-C or DVB-T RF out
* Support CC (closed caption)
* Support QR code, LOGO, OSD insertion—NDS3542HA
(Language Supported: 中文, English, اردو, for more languages please consult us…)
* Control via web management, and easy updates via web
* Lowest cost per channel, breakthrough price
