Product Overview

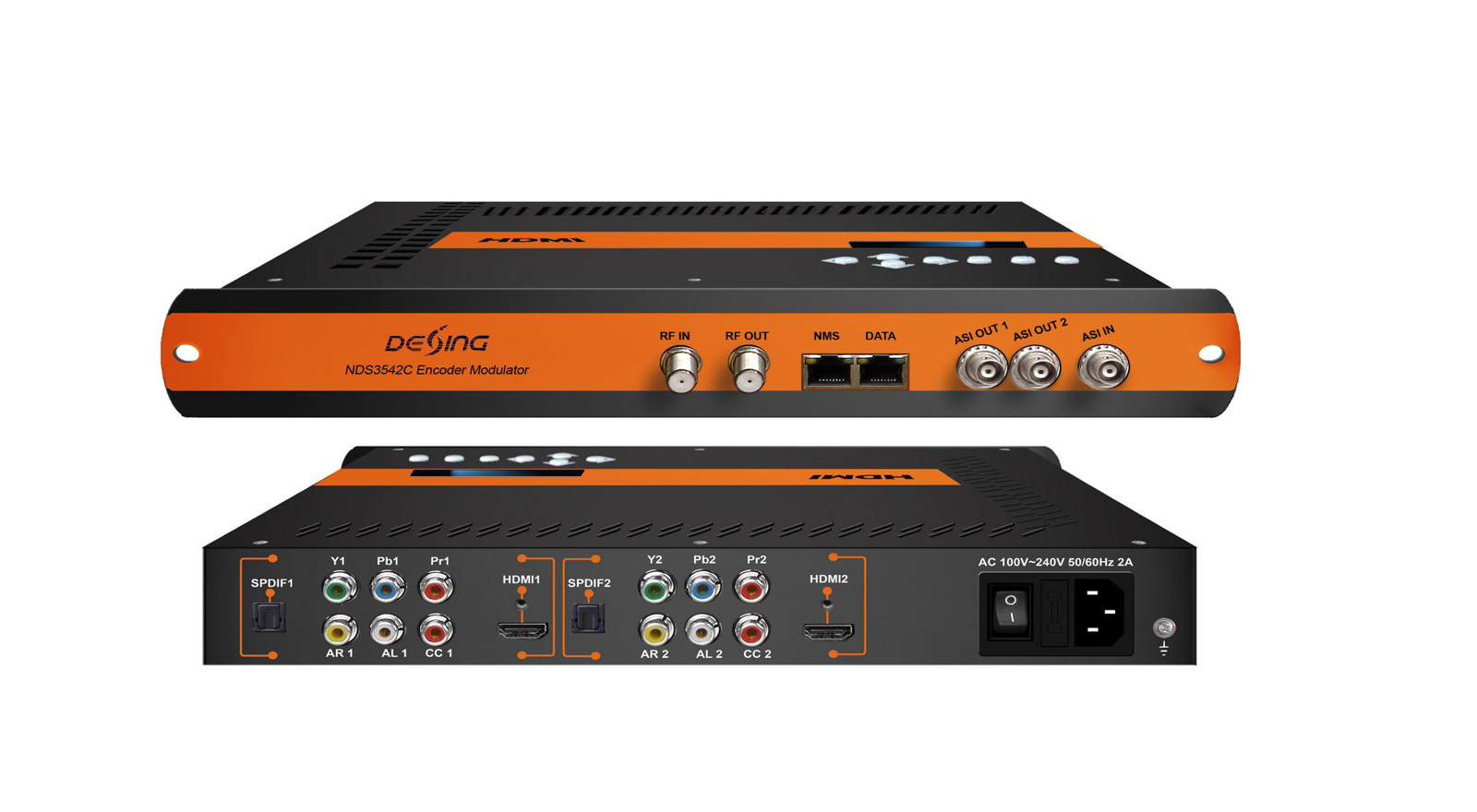

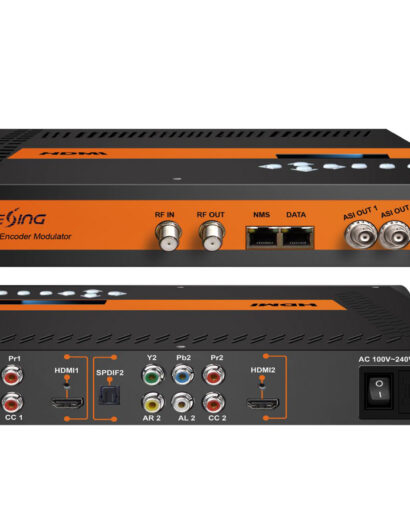

NDS3542C series products are DEXIN’s all-in-one devices which integrate encoding (MPEG-2, MPEG-4/AVC H.264) and modulating to convert HDMI/YPbPr /CVBS (Pr in) signals etc to digital RF output. To meet customers’ various requirements, NDS3542C is also equipped with 1 ASI input, and output with 2 separate ASI ports and 1 IP port.
The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc. Its output signals are to be received by TVs, STB and etc with corresponding standard.
Dexin NDS3542C series products are wildly used in public places such as metro, market hall, theatre, hotels, restaurants and etc for advertising, monitoring, training and educating in company, schools, campuses, hospital… It’s a good choice to offer HD channels and more.
Key Features
* MPEG2 HD & MPEG4 AVC H.264 HD video encoding
* DD AC3 (2.0 optional), MPEG4-AAC, MPEG2-AAC, MPEG1 Layer II audio encoding
* Support DD AC3 (2.0/5.1/7.1) passthrough (for HDMI and SPDIF interface)
* Support AC3 Dialog Normalization
* 2* HDMI/YPbPr/CVBS (Pr in) channels in
* 1*ASI in for re-mux; 1*RF in for RF mix
* 4* DVB-C/4* ATSC/2* DVB-T/1*ISDBT RF out in one device,
* Support DVB-C & ATSC& DVB-T& ISDBT modulation dynamic switching
* 2 separate ASI output to mirror MPTS or one carrier programs;
* IP (2*SPTS & 1*MPTS) out over UDP/RTP/RSTP (only for DVB-C modulation) protocol
* Support CC (Closed Caption) EIA608
* Support Low Delay
* LCN (Logical Channel Number) support
* VCT (Virtual Channel Table) support
* Excellent modulation quality
* LCD display, Remote control and firmware
* Web-based NMS management; Updates via web
