Product Overview

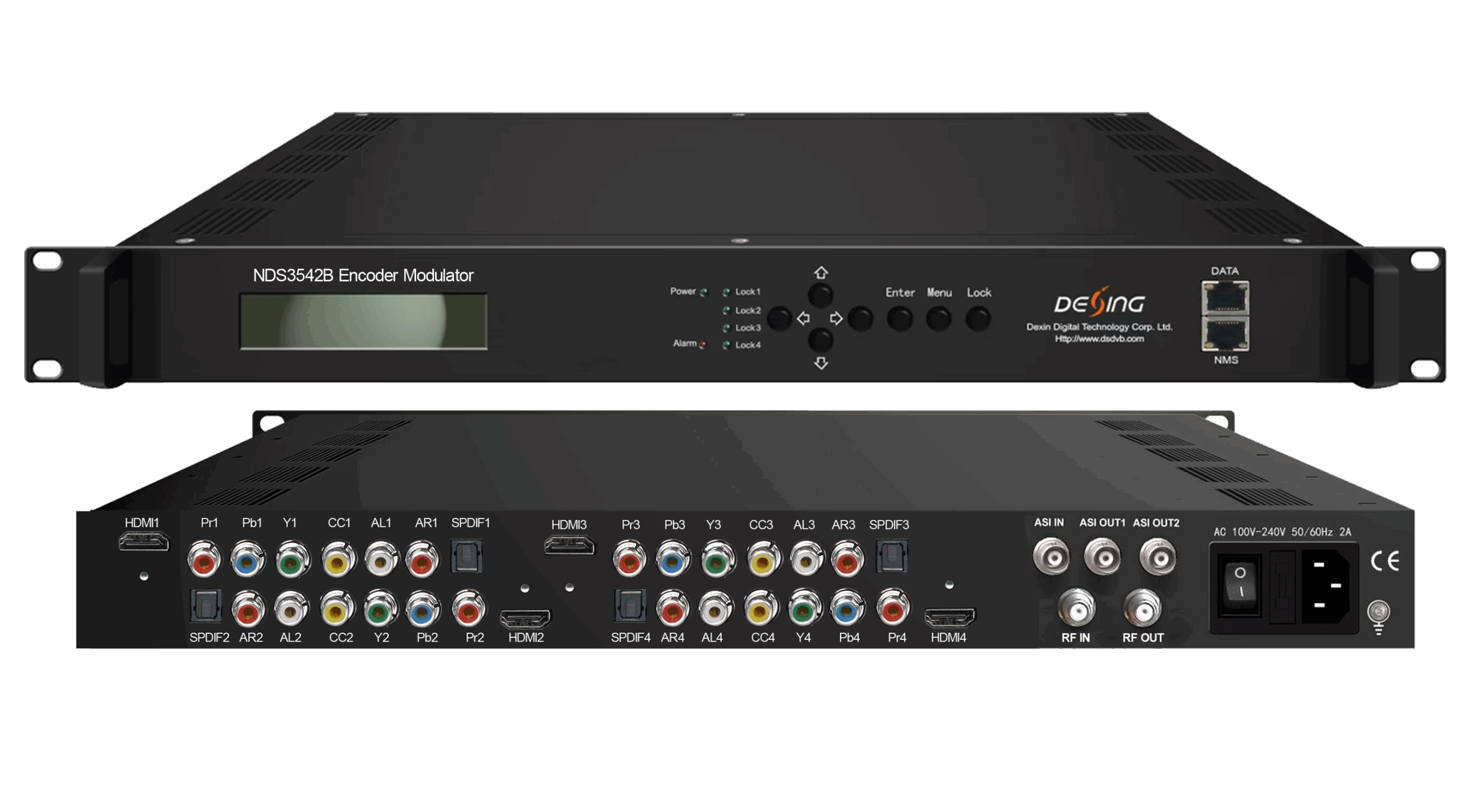

NDS3542B is a DEXIN’s all-in-one device which integrates encoding (MPEG-2, MPEG-4/AVC H.264) and modulation to convert HDMI/YPbPr /CVBS (Pr in) signals etc to digital RF output.
To meet customers’ various requirements, NDS3542B is also equipped with 1 ASI input(optional), and output with 2 ASI ports (optional) and 1 DATA port.
The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc. Its output signals are to be received by TVs, STB and etc with corresponding standard.
Dexin NDS3542B is wildly used in public places such as metro, market hall, theatre, hotels, restaurants and etc for advertising, monitoring, training and educating in company, schools, campuses, hospital… It’s a good choice to offer HD channels and more.
Key Features
* MPEG2 HD/SD & MPEG4 AVC H.264 HD/SD video encoding
* DD AC3 (2.0), MPEG4-AAC, MPEG2-AAC, MPEG1 Layer II audio encoding
* Resolution Downscale (the same frame rate)
* 4x HDMI/YPbPr/CVBS (Pr in) channels in
* 1x ASI in for re-mux and 2xASI out(optional); 1xRF in for RF mix
* 4xDVB-C carriers out (4x DVB-T, 2x ISDB-T, 4x ATSC carriers out optional); IP out
* Support CC (Closed Caption) Line 21 (from CVBS source only)
* Support Low Delay
* LCN (Logical Channel Number) support
* VCT (Virtual Channel Table) support— for DVB-C and ATSC
* Excellent modulation quality
* LCD display, Remote control and firmware
* Web-based NMS management; Updates via web
