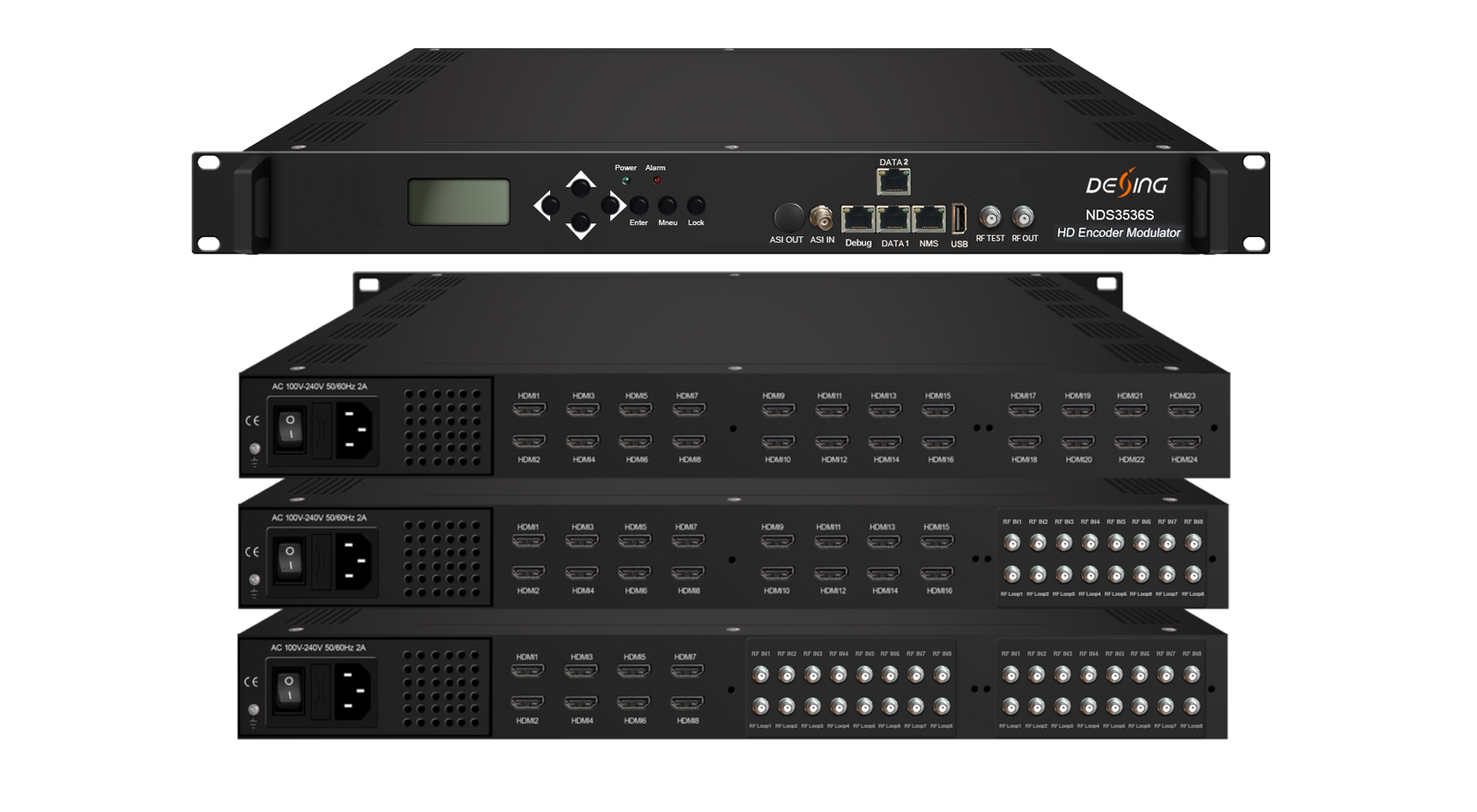

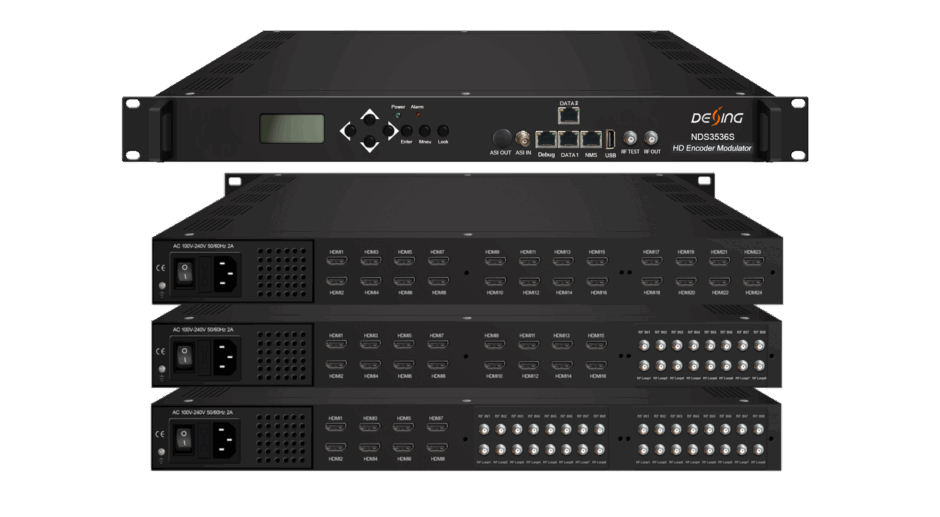

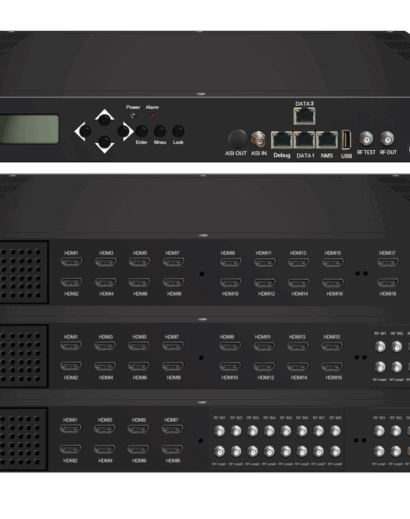

NDS3536S V2 Encoder Modulator

Product Overview

NDS3536S (V2) is a professional and high integration device which includes encoding (and de-modulation), multiplexing, and modulation functions in one case. It supports 8/16/24 HDMI (or HDMI plus tuner mix input) inputs, 1 ASI input, 1 USB player input and 128 IP inputs via the GE port, and output by multiple DVB-C (or DVB-T/ATSC/ISDB-T optional) carrier channels. It also supports MPTS output as mirror of carriers through the GE port and 1 ASI out as mirror of one of the carriers. This full function device makes it ideal for a small CATV head end system, and it’s a smart choice for hotel TV system, entertainment system in sports bar, hospital, apartment…

Key features

• 8/16/24 HDMI (or HDMI plus DVB-S/S2/S2X/C/T/(T)/ISDB-T tuner) inputs,
• HEVC/H.265, MPEG-4 AVC/H.264 Video encoding
• 1 ASI input for re-mux
• 1 USB Player (Insert the USB Flash drive with “xxx.ts” videos in NDS3536S and play back the content in an easy way; file system FAT 32)
• 128 IP input over UDP and RTP via GE port
• Each carrier out channel process maximum 32 IP from the GE port (UDP&RTP protocol)
• MPEG1 Layer II, LC-AAC and HE-AAC Audio encoding, AC3 Pass Through and audio gain adjustment
• Support 16/32ch DVB-C RF out (8ch/16ch DVB-T, 16/32ch ATSC, or 16ch ISDB-T out for option, as per order)
• Support 1 ASI out as mirror of one of RF output carriers—Optional
• Support IP MPTS or SPTS output over UDP, RTP/RTSP
• Support LOGO, Caption and QR code insertion (Language Supported: 中文, English, العربية, ไทย, हिन्दी, русский, اردو, for more languages please consult us…)
• Support PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting
• Control via web management, and easy updates via web
