Product Overview

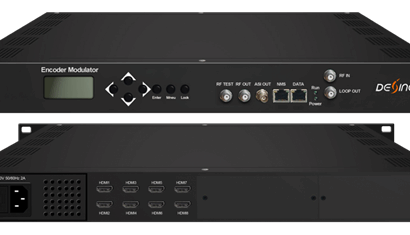

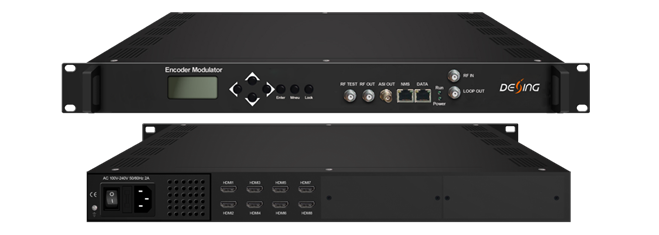

NDS3528S (V2) is a professional high integration device which includes encoding, multiplexing, and modulating in one box. It supports 8 HDMI inputs and DVB-C/DVB-T/ATSC RF out with 4 adjacent carries and 4 MPTS out as mirror out of the 4 modulation carriers via DATA (GE) port. This full function device makes it ideal for small CATV head end system, and it’s a smart choice for hotel TV system, entertainment system in sports bar, hospital, apartment…
Key features
- Support LOGO, OSD and QR code insertion for every local channel (Language Supported: 中文, English, العربية, ไทย, हिन्दी, руская, اردو, for more languages please consult us…)
- 8 HDMI input, HEVC/H.265, MPEG-4 AVC/H.264 Video encoding
- MPEG1 Layer II, LC-AAC，HE-AAC audio encoding format and AC3 Pass Through and support audio gain adjustment
- 1 DVB-C/T/(T)/ISDB-Tb tuner input for re-mux (Optional for DVB-C RF out version)
- 4 groups of multiplexing/modulating output channels (scrambling function optional for DVB-C RF out version)
- 4 DVB-C or 4 DVB-T or 4 ATSC carrier out
- Support 128 IP inputs, 4 MPTS IP output over UDP and RTP/RTSP
- Support PID remapping/PSI/SI editing and inserting
- Control via web management, and easy updates via web
