Product Overview

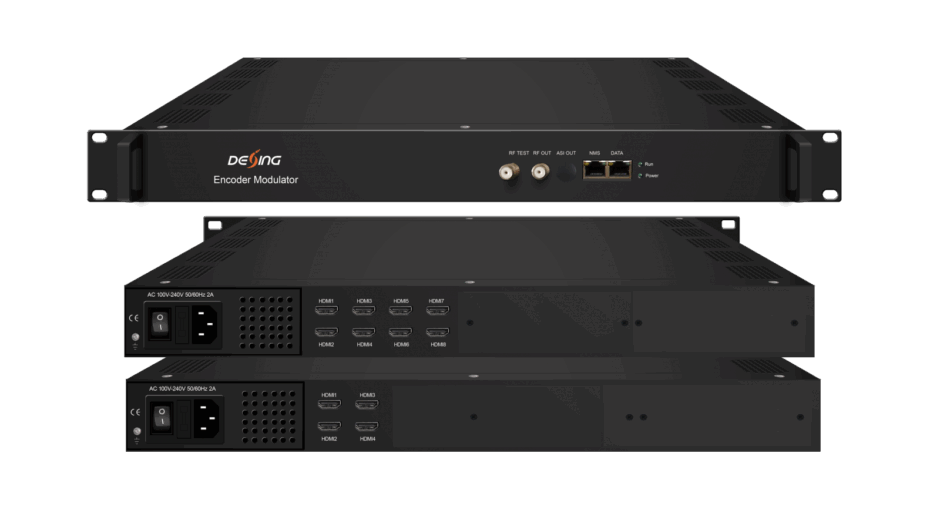

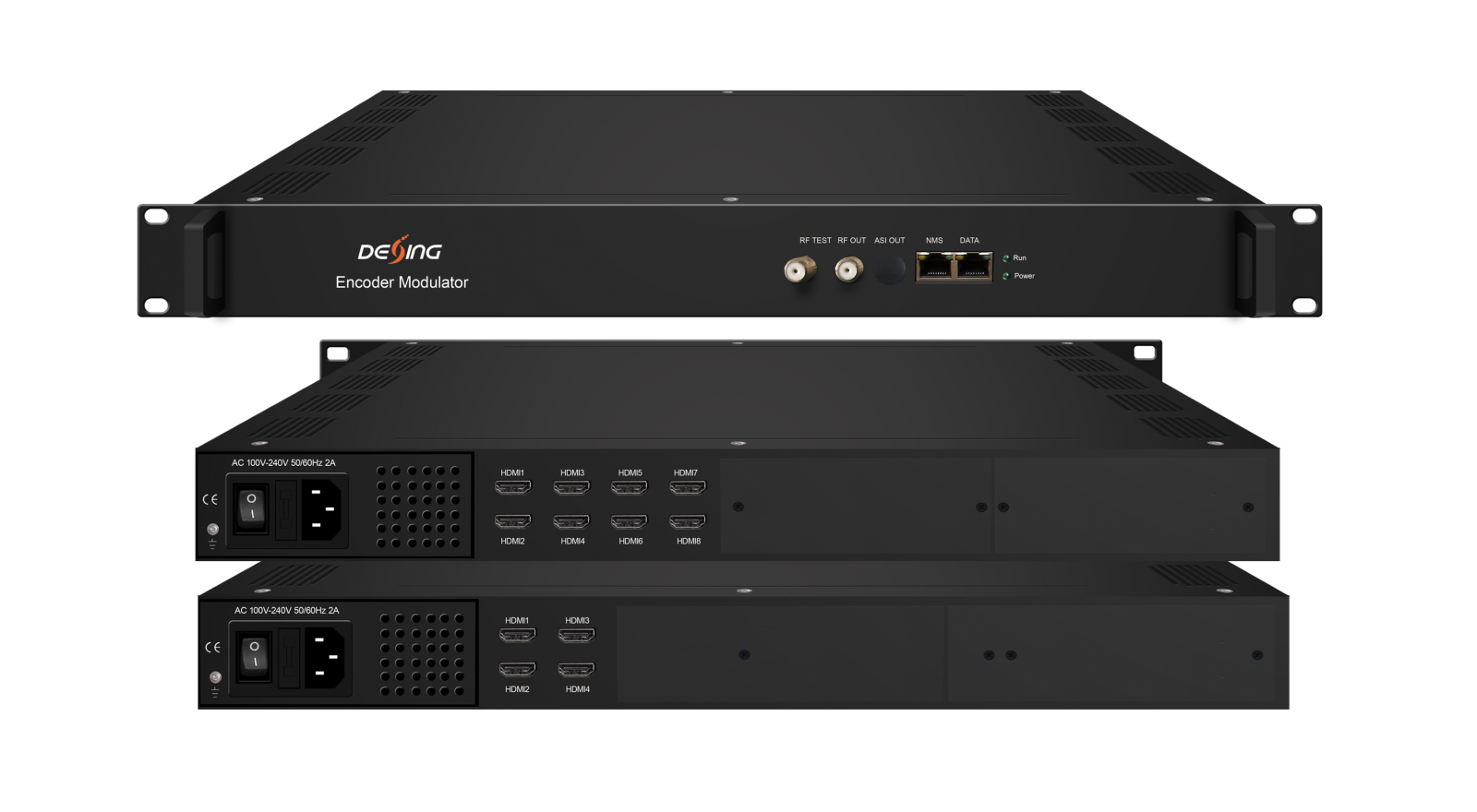

NDS3524S/NDS3528S is a professional high integration device which includes encoding, multiplexing, and modulating in one box. It supports 4/8 HDMI inputs and DVB-C/T RF out with 2/4 adjacent carries and 2/4 MPTS out as mirror out of the 2/4 modulation carriers via DATA (GE) port. This full function device makes it ideal for small CATV head end system, and it’s a smart choice for hotel TV system, entertainment system in sports bar, hospital, apartment…
Key features
* Support LOGO, OSD and QR code insertion for every local channel (Language Supported:中文, English, العربية, ไทย, हिन्दी, руская, اردو, for more languages please consult us…)
* 4/8 HDMI input, MPEG-4 AVC/H.264 Video encoding
* MPEG1 Layer II, LC-AAC，HE-AAC audio encoding format and AC3 Pass Through and support audio gain adjustment
* 1 DVB-C/T/ISDB-Tb tuner input for re-mux (Optional for NDS3528S with DVB-C RF out version)
* 2/4 groups of multiplexing/modulating output channels (scrambling function optional for NDS3528S with DVB-C RF out version)
* 2/4 DVB-C or DVB-T carrier out with each carrier channel processing maximum 32 IP from DATA input port
* Support 64/128 IP inputs , 2/4 MPTS IP output over UDP and RTP/RTSP
* Support PID remapping/PSI/SI editing and inserting
* Control via web management, and easy updates via web
