Product Overview

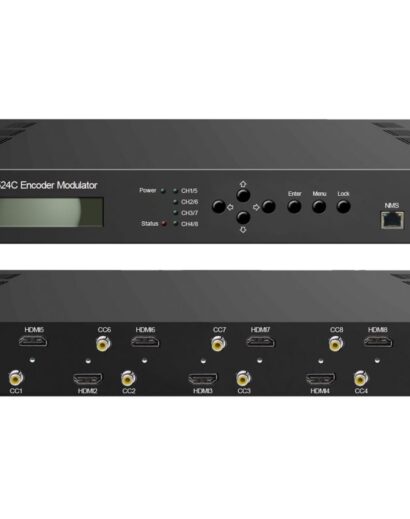

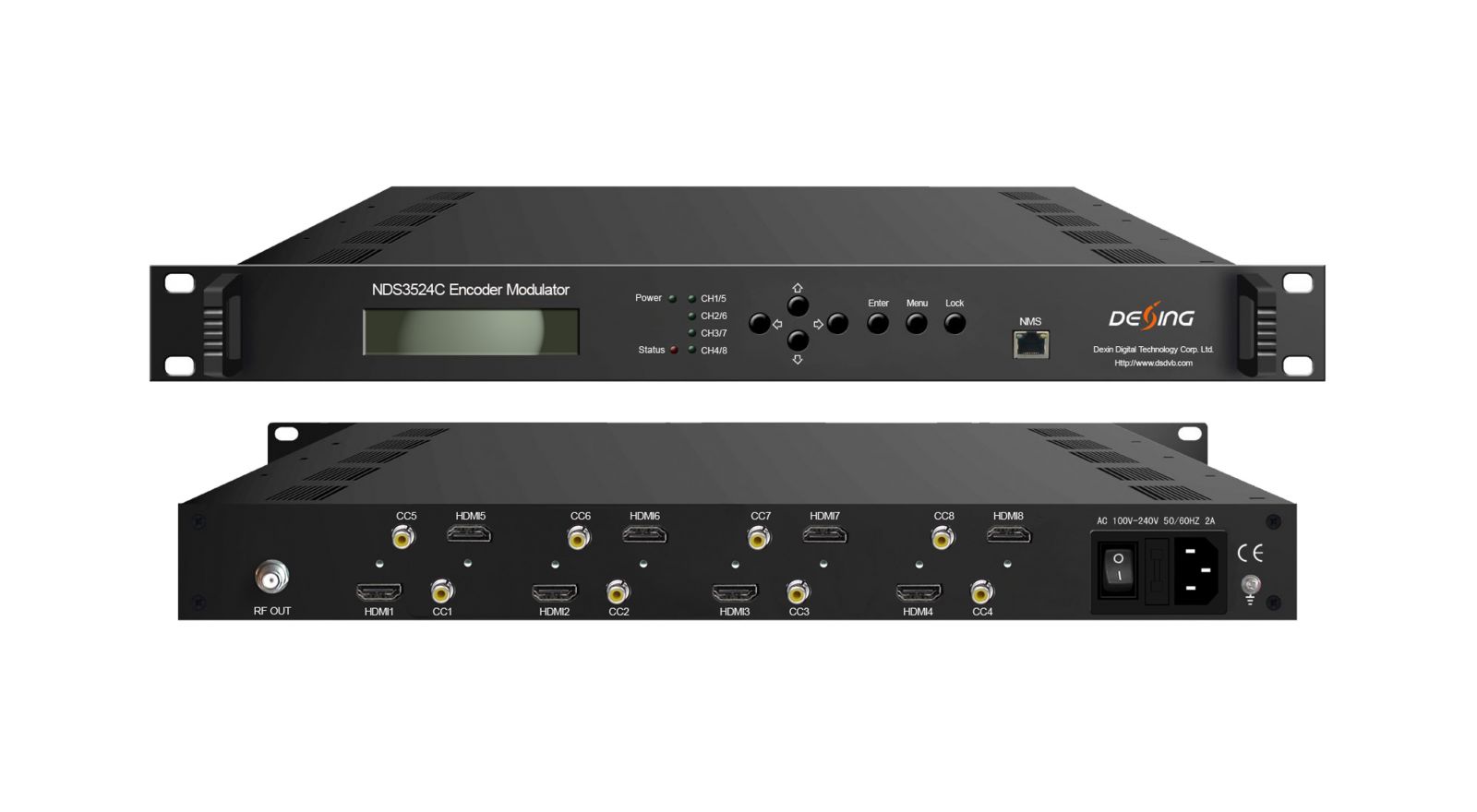

NDS3524C encoder modulator is DEXIN’s all-in-one device integrating MPEG2 encoding and modulating to convert audio/video signals into DVB-C/T/ATSC/ISDB-T/DTMB RF out. It supports 1/4/8 HDMI inputs, and its pay-as-you-grow modular design and flexible configuration are making it extremely scalable, and very reliable with high performance. The signals source could be from STB, satellite receiver, closed-circuit television cameras and antenna etc. Its output signal is to be received by TVs or STBs etc.
Key Features
* Support 1/4/8 HDMI channels input
* Support MPEG2 video encoding
* Support 1080p/i,720p, 576i , 480i video resolution
* Support low latency(50~1000ms)
* Support MPEGI layer 2, MPEG-2 AAC, and DD AC3 audio encoding
* Support CC (Closed Caption), EIA 608
* Support LCN (Logical Cluster Number)
* DVB-C/T/ATSC/ISDB-T/DTMB RF out in one device, Modulation dynamic switching
* Each channel supports 1 DVB-C/T/ATSC/ISDB-T/DTMB output option
* Control via web-based NMS, and easy updates via web
