Outline

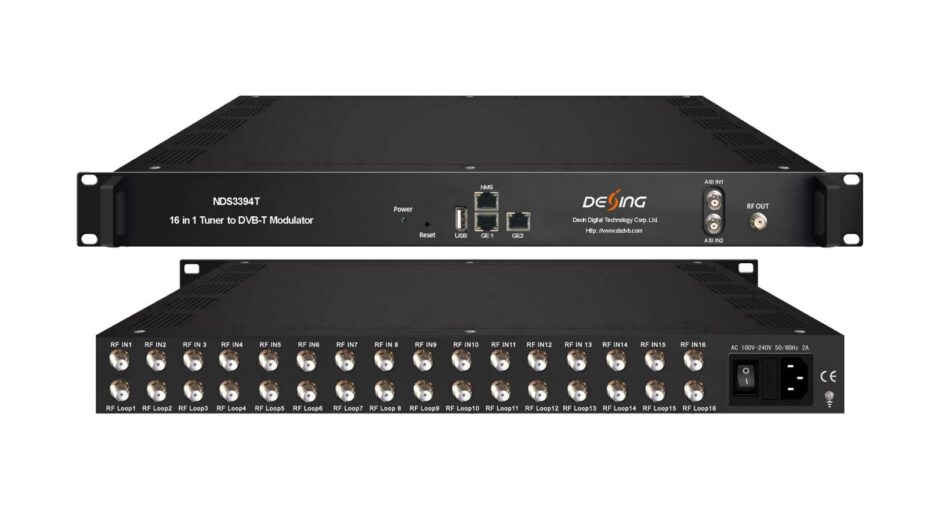

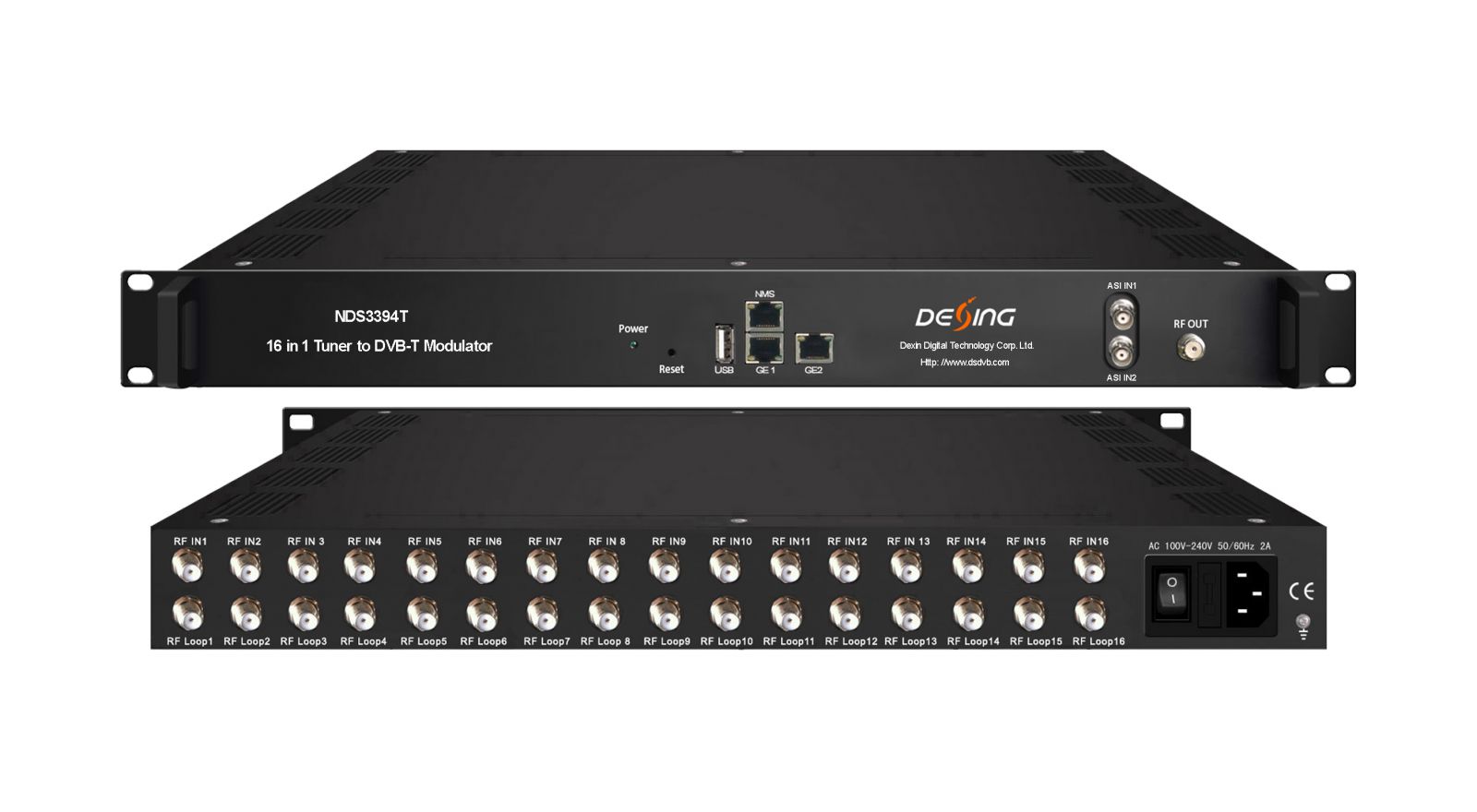

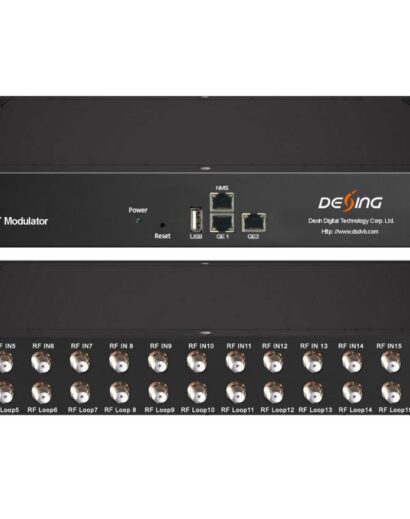

NDS3394T is a high performance and cost-effective DVB-T modulator designed by Dexin. It supports 16 FTA tuners input, maximum 256 IP input through GE1&GE2 and TS input for re-mux through 2 ASI ports. After BISS descrambling ((only for NDS3394T version B)), multiplexing and DVB-T modulating, it gives 8 non-adjacent carrier output and 8 IP (MPTS) output as mirror of carriers through GE1.
NDS3394T is also characterized with high integrated level, high performance and low cost. It supports dual power supply (optional). This is very adaptable to newly generation broadcasting system.
Key Features
* 16 DVB-C (DVB-T/-(T)/-S/-S2/S2X, ATSC, ISDB-T Optional) FTA Tuner + 2 ASI input+256 IP input over UDP and RTP protocol
* 8 DVB-T RF output
* 8 IP (MPTS) output over UDP and RTP/RTSP, as mirror of carriers
* Support 8 groups BISS descrambling (only for NDS3394T version B)+8 groups multiplexing +8 groups DVB-T modulating
* Support accurate PCR adjusting, PSI/SI editing and inserting, A/V PID filtering
* Support Web management, Updates via web
* Redundancy Power Supply (optional)
