Product Overview

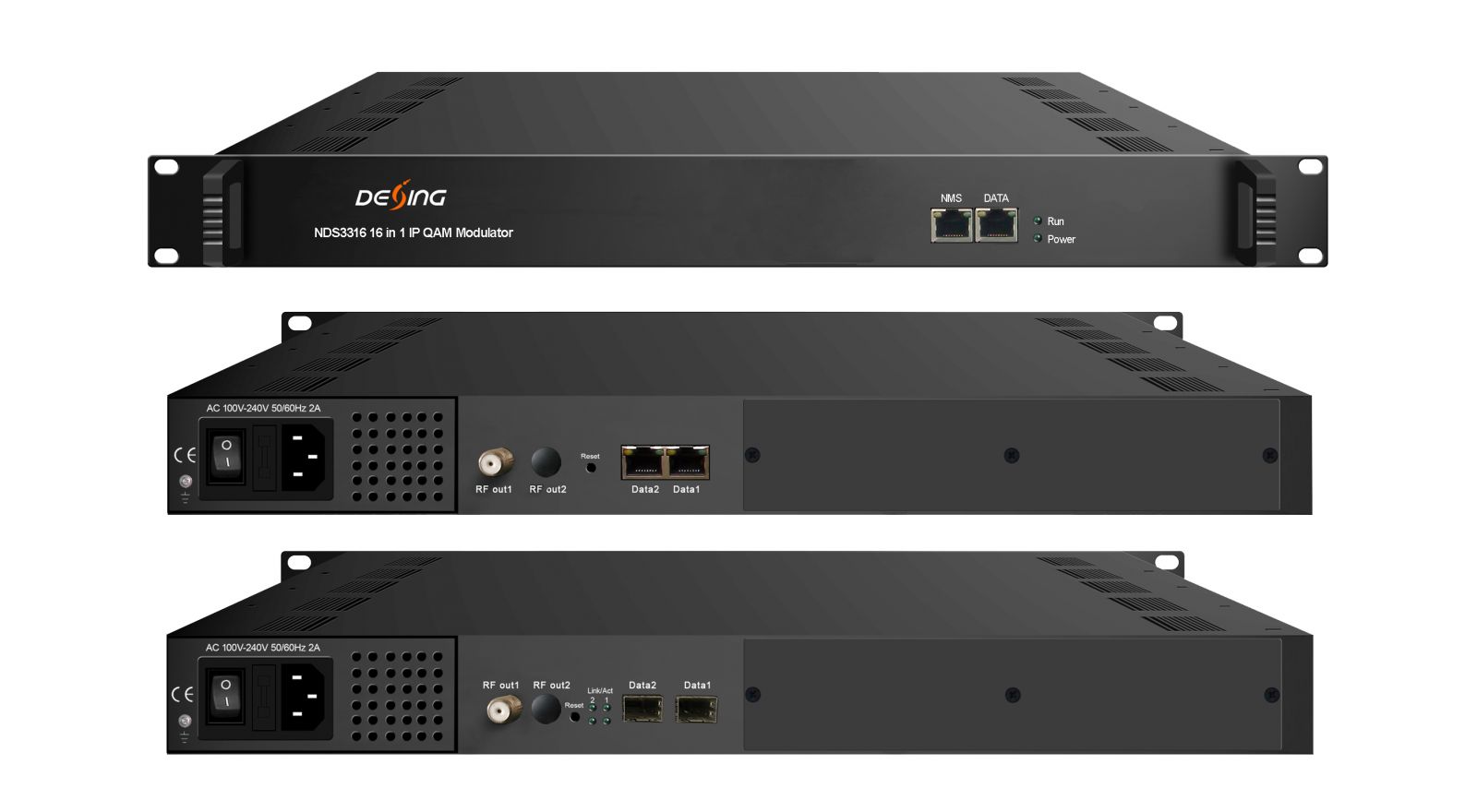

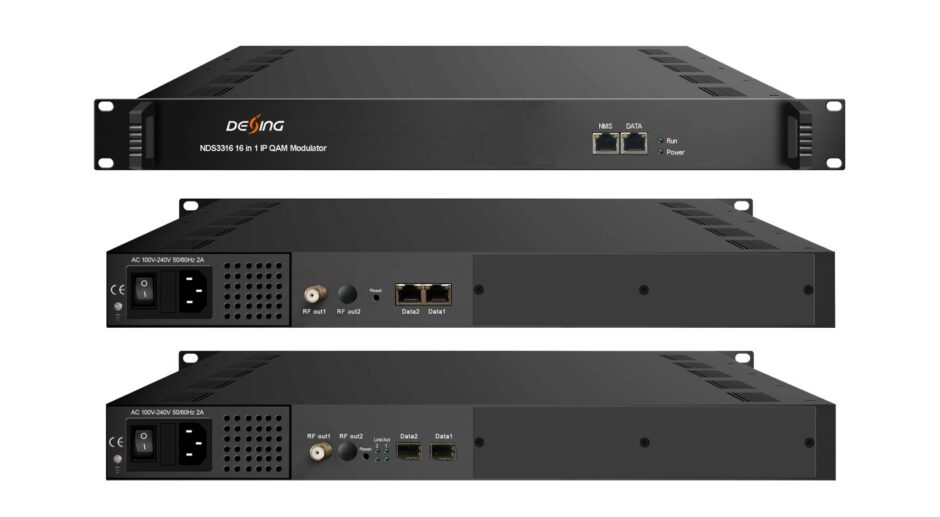

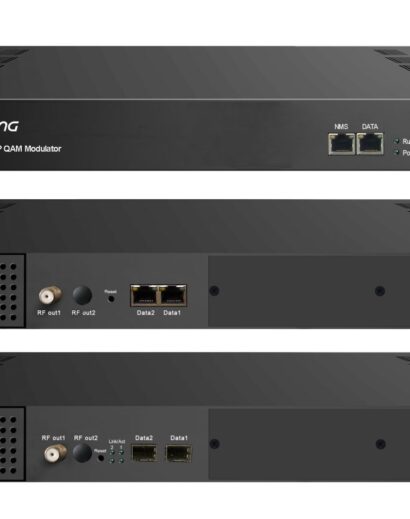

NDS3316 16 in 1 IP QAM modulator is the latest generational Mux-scrambling-modulating all-in-one device developed by DEXIN. It has 16 multiplexing channels, 16 scrambling channels and 16 QAM (DVB-C) modulating channels, and supports maximum 512 IP input through the 3 GE ports and 16 non-adjacent carriers (50MHz~960MHz) output through the RF output interface. The device is also characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation CATV broadcasting system.
Key Features
* 3 GE ports (max 512 IP in):
Data1 & Data2 bi-directional ports, max 512 IP in, 16 IP out
Data port (located on front panel), max 128 IP in
* Max 840Mbps for each GE input
* Support accurate PCR adjusting
* Support CA filtering, PID remapping and PSI/SI editing
* Supports up to 180 PIDS remapping per channel
* Support DVB general scrambling system (ETR289), simulcrypt standards ETSI 101 197 and ETSI 103 197
* Support 16 IP output through Data1 & Data2 over UDP/RTP/RTSP
* 16 non-adjacent QAM carriers output, compliant to DVB-C (EN 300 429) and ITU-T J.83 A/B
* Support RS (204,188) encoding
* Support Web-based Network management
