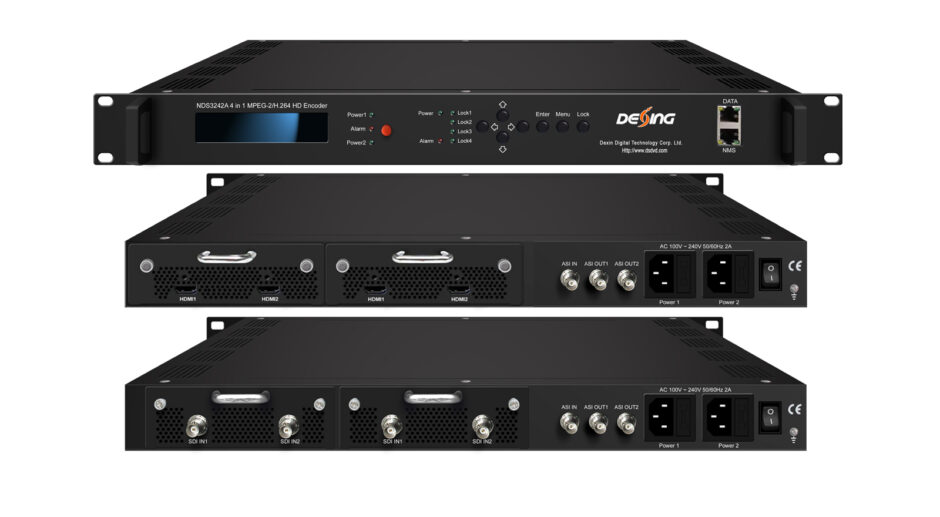

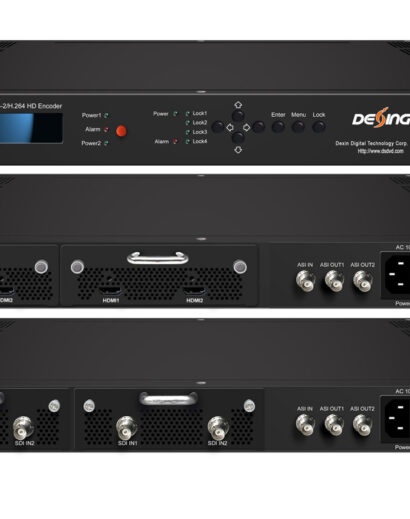

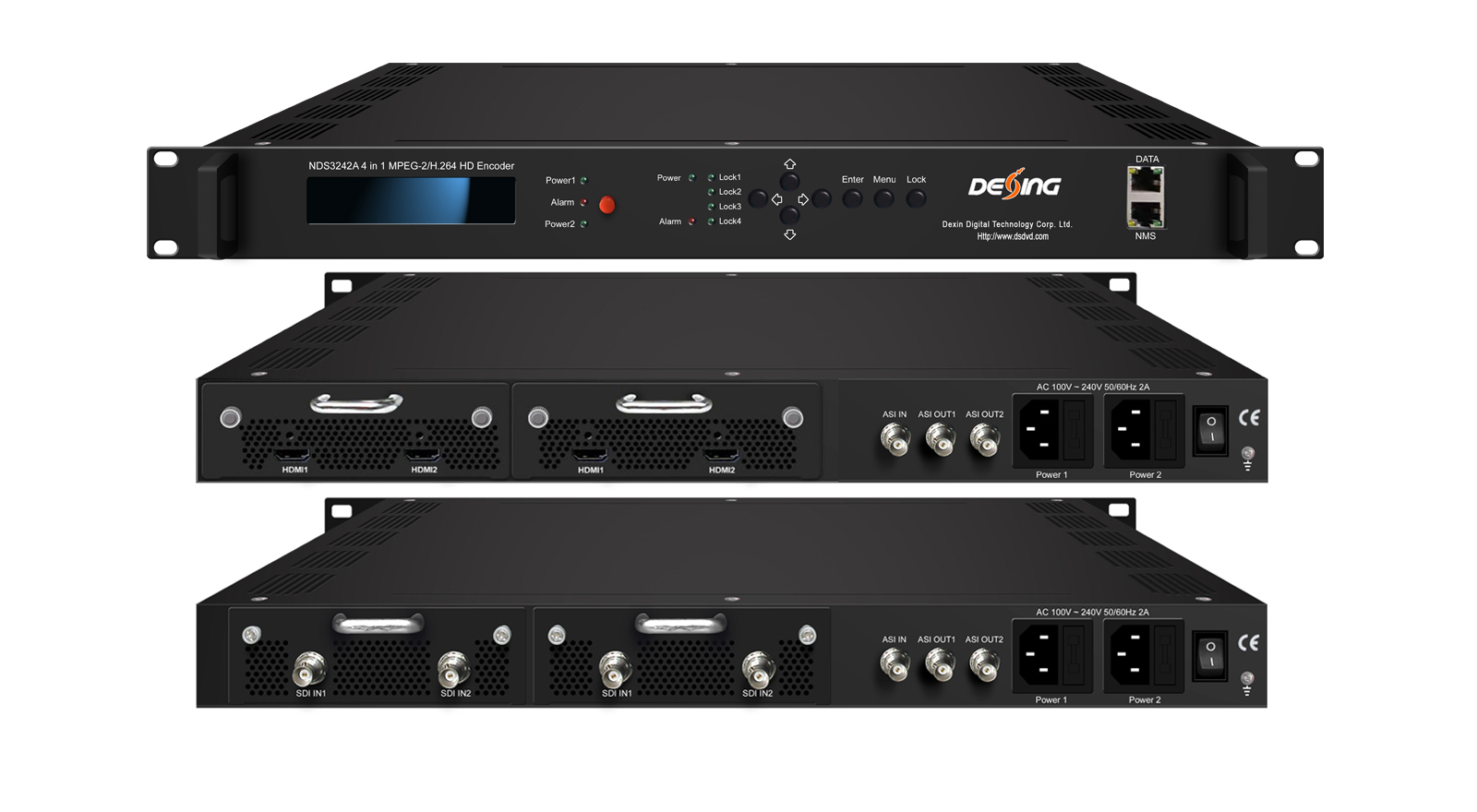

NDS3242A 4-in-1 MPEG2 H.264 HD Encoder

Product Overview

NDS3242A 4‐in‐1 MPEG2/H.264 HD Encoder is a DEXIN new professional HD/SD audio & video encoding device with a powerful functionality. It is equipped with 4 SDI or 4

HDMI inputs supporting MPEG‐2 and MPEG‐4 AVC/H.264 video encoding and

MPEG 2, MPEG 2‐AAC, MPEG 4‐AAC and DD AC3 audio encoding. The 4 encoded programs will output through ASI and IP ports in MPTS or SPTS, and there is also one ASI in port for re-multiplexing.

It adopts inner drawer‐type structural design which greatly facilitates the change of encoding modules if needed.

Key Features

Dual power supply

MPEG2 HD/SD & MPEG4 AVC/H.264 HD/SD video encoding

MPEG 2, MPEG 2-AAC, MPEG 4-AAC and DD AC3 audio encoding

Support dialog normalization (applicable for DD AC3)

4*SDI inputs or 4*HDMI inputs or 2* SDI + 2* HDMI inputs

1*ASI in for re-multiplexing

Support resolution downscale conversion

Support CC (closed caption) EIA 608 & EIA 708 & Line 21 (for SDI input version only)

Support Low Delay function

Support PSI/SI editing and inserting

Supports IP null packet filter

ASI output as mirror of MPTS or SPTS 1-4, IP (MPTS & 4 SPTS) output over UDP, RTP/RTSP

LCD display, Remote control

Web-based NMS management; Updates via web
