Product Overview

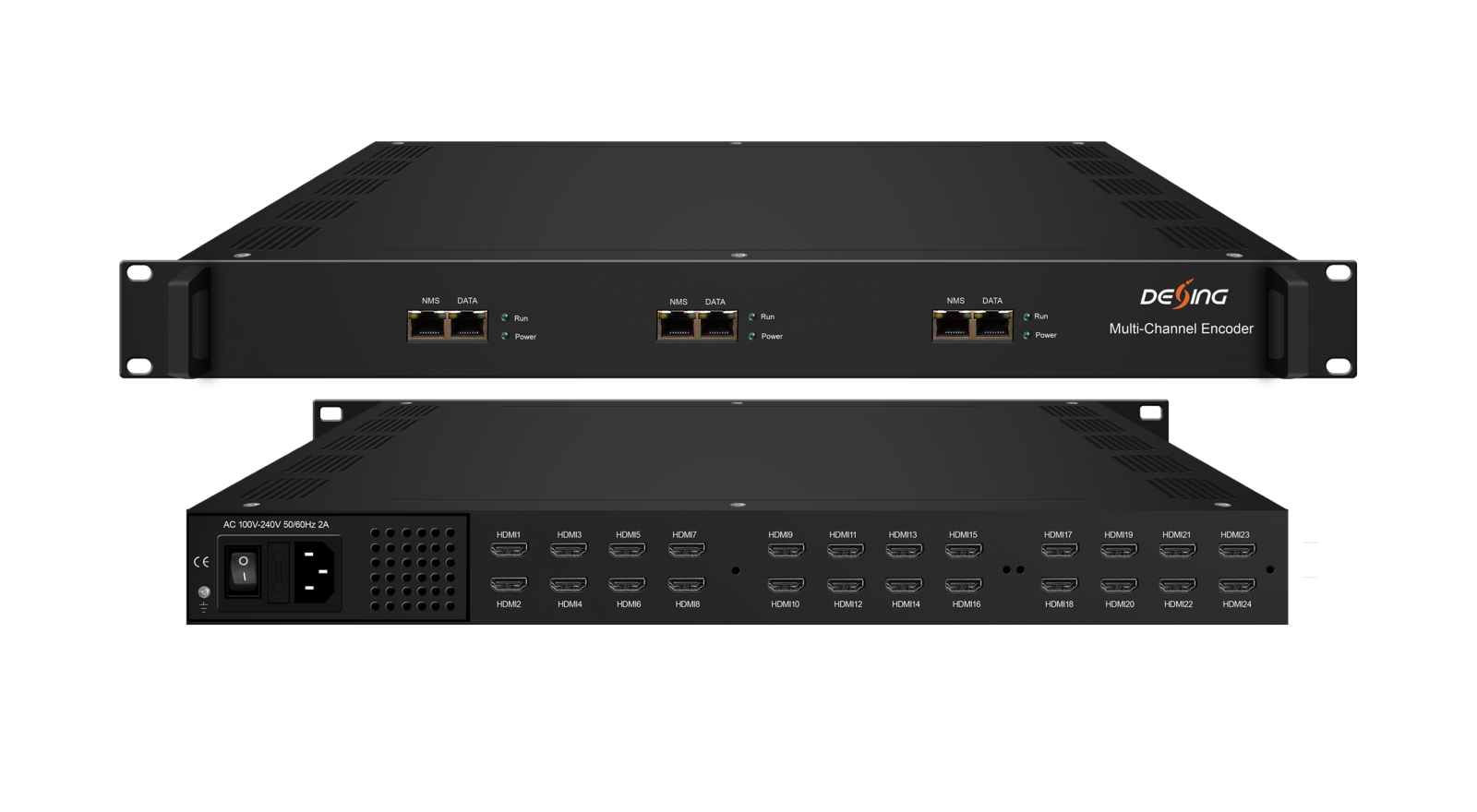

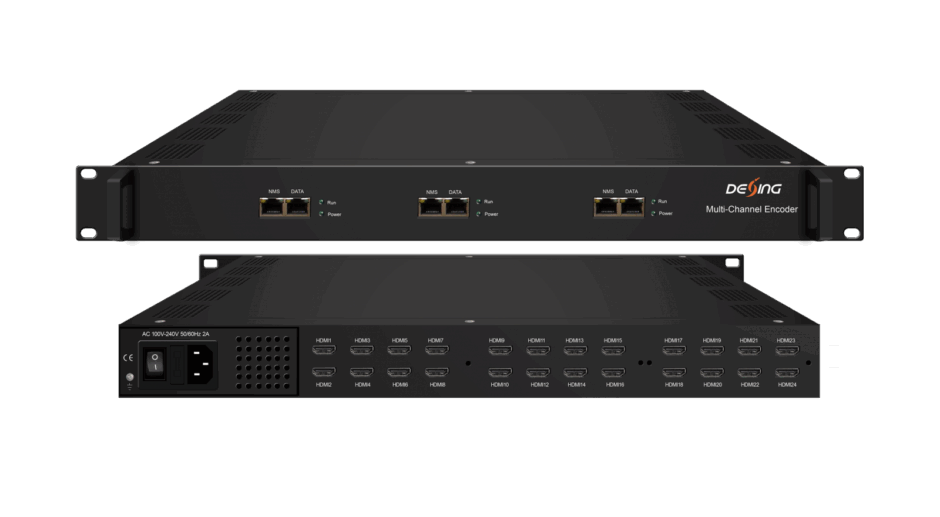

NDS3228S Multi-Channel encoder is a professional HD/SD audio & video encoding device. It has 8/16/24 HDMI inputs for option. Every 8 HDMI ports share one encoder module with each module supporting 1MPTS and 8SPTS output. Its high integration and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc.
Key features
· 8 HDMI inputs with 8 SPTS and 1 MPTS output (each encoder module), max 24 HDMI inputs
· HEVC/H.265 (for V2 only), MPEG4 AVC/H.264 video encoding format
· MPEG1 Layer II, LC-AAC，HE-AAC audio encoding format and AC3 Pass Through, and audio gain adjustment
· IP output over UDP and RTP/RTSP protocol; 1 ASI out as mirror of MPTS (Optional)
· Support QR code, LOGO, caption insertion (Language Supported: 中文, English, العربية, ไทย, हिन्दी, руская, اردو for more languages please consult us…)
· Support “Null PKT Filter” function
· Control via web management, and easy updates via web
