Product Overview

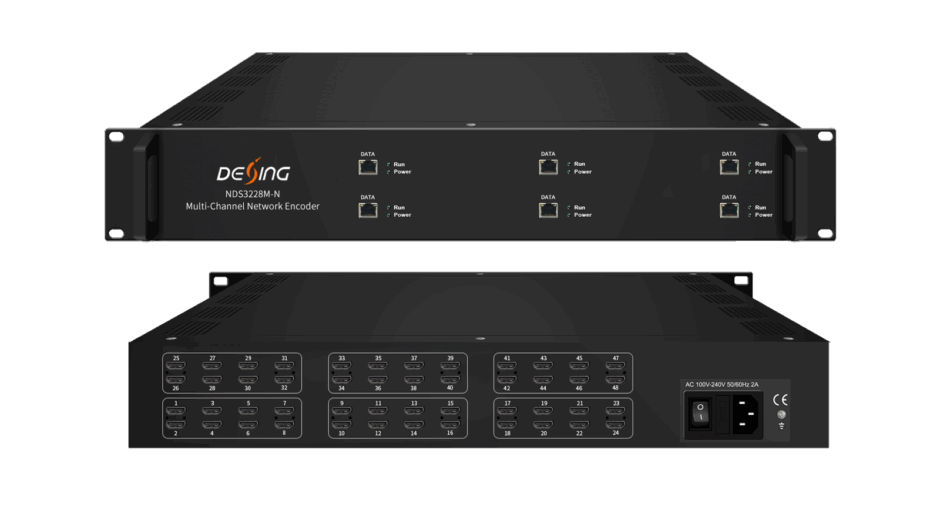

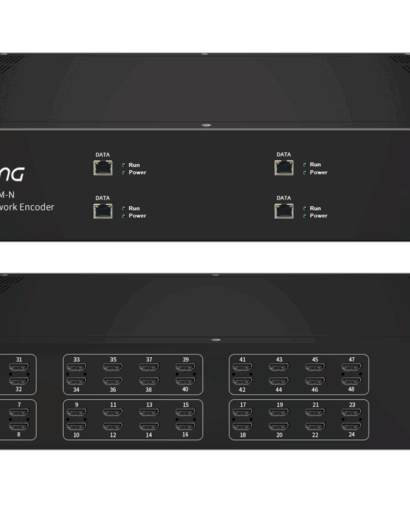

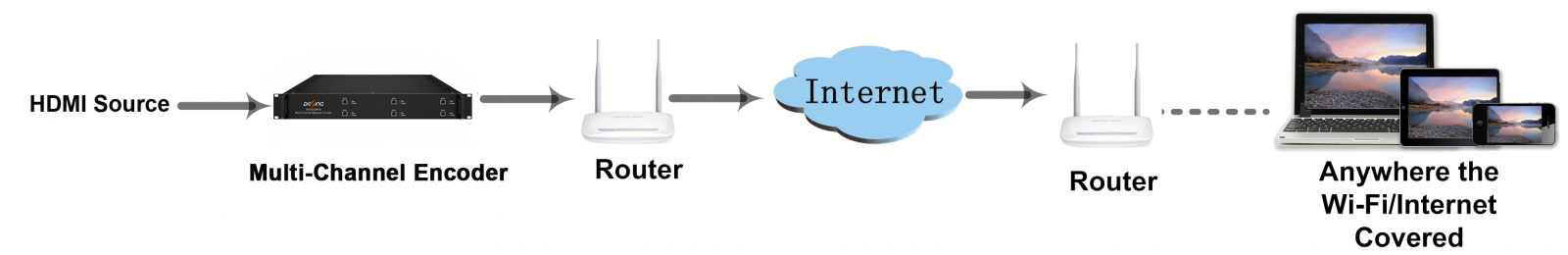

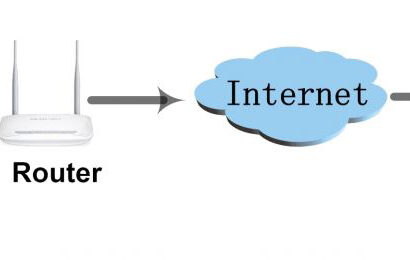

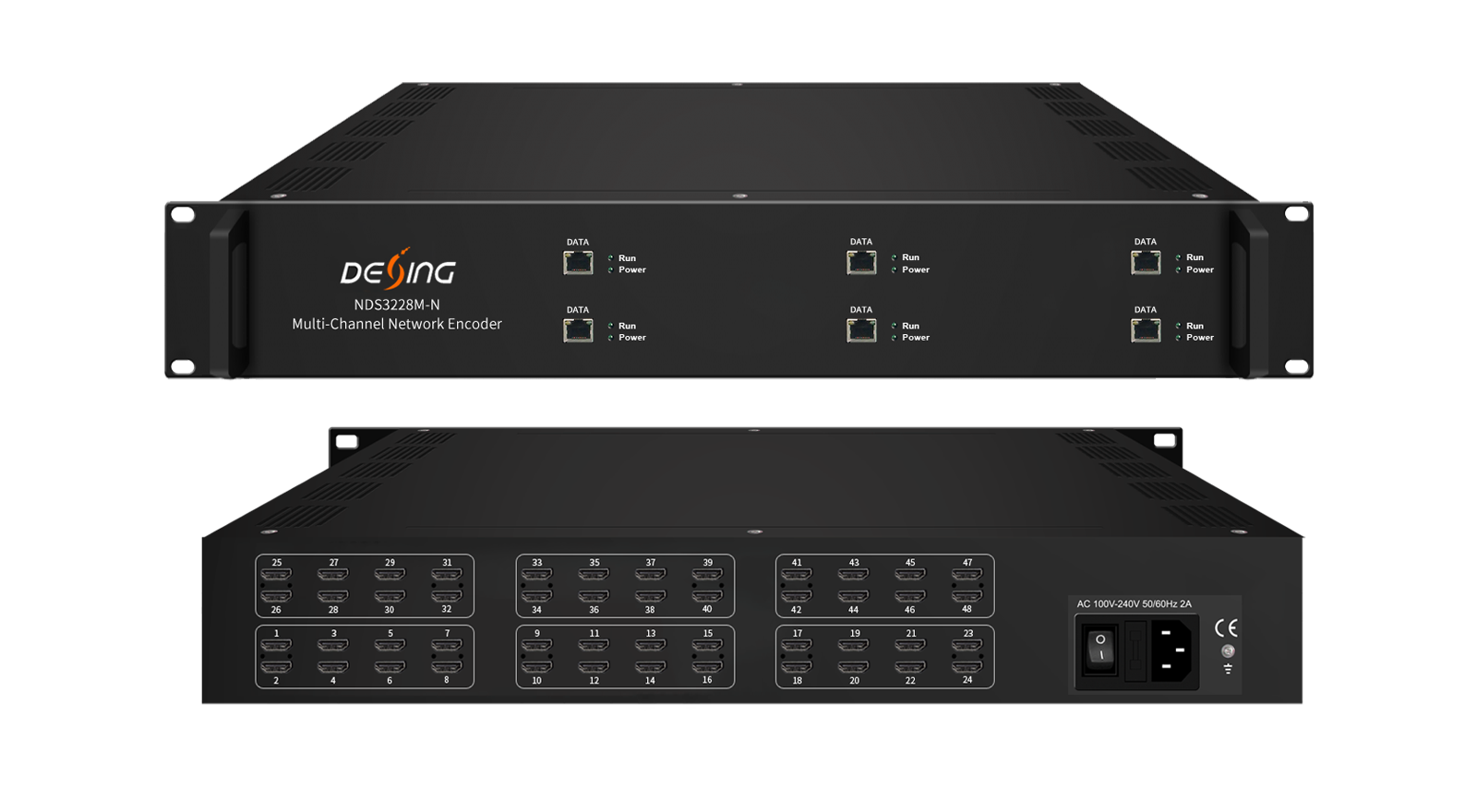

DEXIN NDS3228M-N 48-Channel Network Encoder is a 2-U encoding device for IP broadcasting. It is equipped with 48 HDMI-input channels with HEVC/H.265 and MPEG-4 AVC/H.264 video encoding and MPEG-1 Layer 2, LC-AAC, HE-AAC audio encoding and AC3 Pass through. It can transfer the live program through the internet/LAN and output IP streams over UDP (Unicast/Multicast), SRT, RTSP, RTMP, HTTP and HLS, and the output signals can be received by PC, phone and other mobile terminals. NDS3228M-N enables you to watch the programs via your IP STB, PC or TV anywhere.
Key Features
l Support 48 HDMI inputs, with 48 SPTS output (each encoder module with 8 HDMI inputs and 1 DATA port, only supporting SPTS without “Null Packets”, Not MPTS), max 48 HDMI inputs from 6 encoder modules
l HEVC/ H.265 , MPEG 4 AVC/H.264 video encoding format
l MPEG1 Layer II, LC-AAC，HE-AAC audio encoding format and AC3 Pass Through, and audio gain adjustment
l Support IP Output over UDP (Unicast/Multicast), SRT, RTSP, RTP, RTMP, HTTP and HLS
l Support QR code, LOGO, caption insertion(Language Supported:中文,English,العربية,ไทย,हिन्दी,руская,اردو for more languages please consult us…)
