Outline

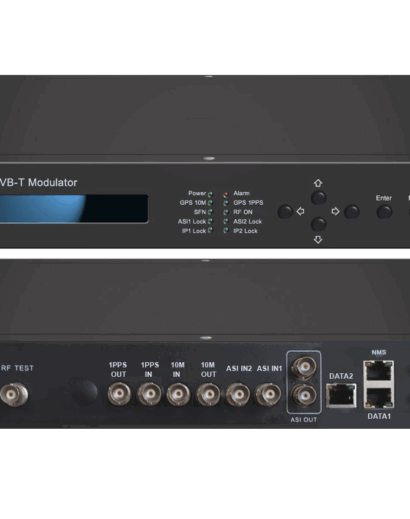

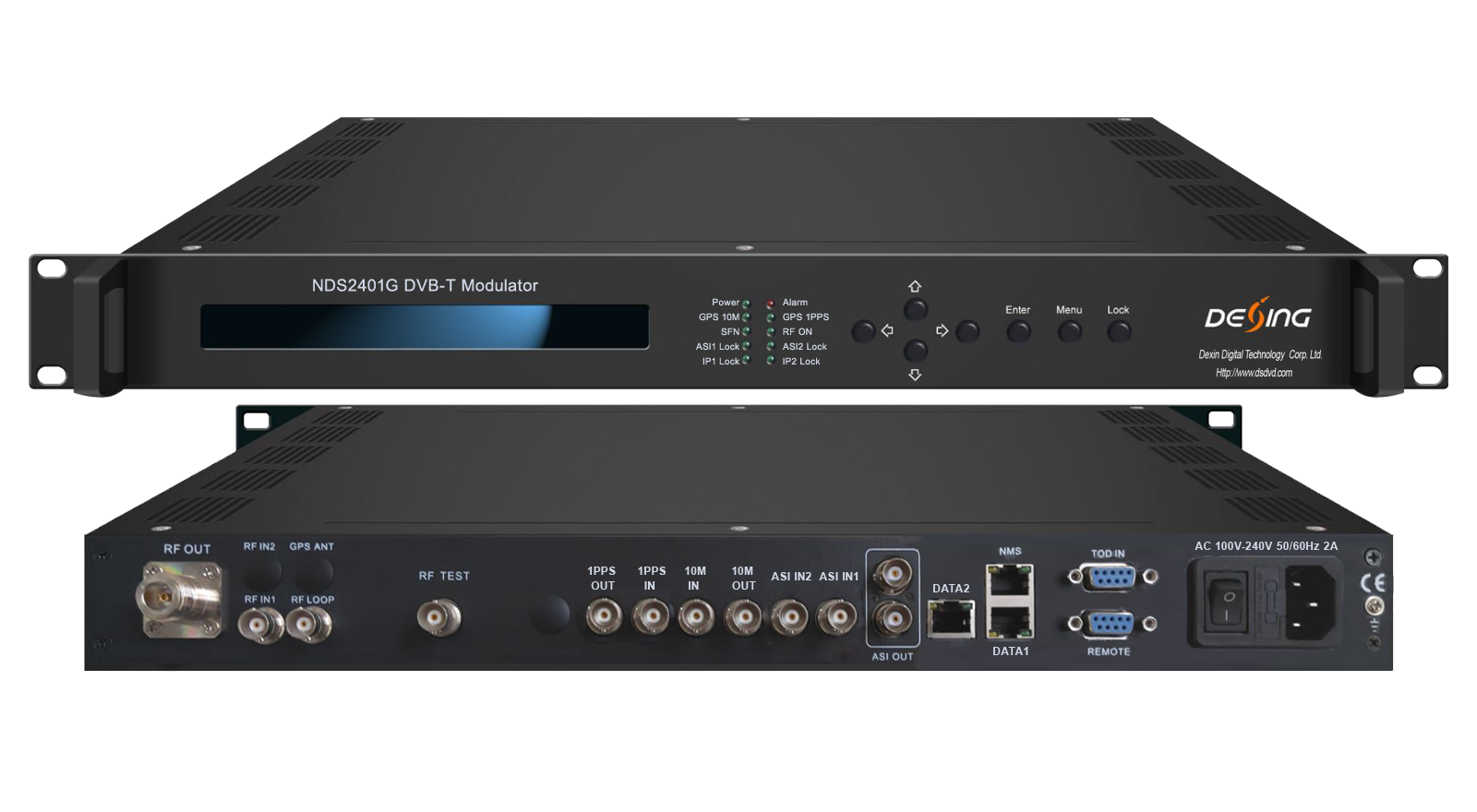

The NDS2401G DVB-T Modulator is a high performance modulator developed according to the DVB-T (EN300744) standard. It adopts advanced framing structure, channel encoding and modulation technology. It supports both MFN (Multi-frequency network) and SFN (single frequency network). In order to improve the output performance of the transmitter, this DVB-T modulator can support nonlinear digital pre-distortion. Moreover, this device facilitates the local and remote control with web software.
Features
1. Fully complying with DVB-T standard (EN300744)
2. 2 ASI in & 2 IP (DATA1& DATA2) input for hot backup input, 1 RF in, 10MHz reference clock and 1PPS in
3. Support both SFN and MFN
4. Transmission mode: 2k, 8k
5. Transmission bandwidth 5M, 6M, 7M and 8M
6. Excellent phase noise and MER performance, MER≥42db
7. Support spectrum invert
8. RF output range 50~1000MHz, 1Hz step
9. Supports adaptive non-linear digital pre-distortion (DPD)
10. Constant temperature crystal oscillator, frequency stability is high up to 0.1ppm
11. Full-size front panel LCD display, keyboard and web management
