Product Overview

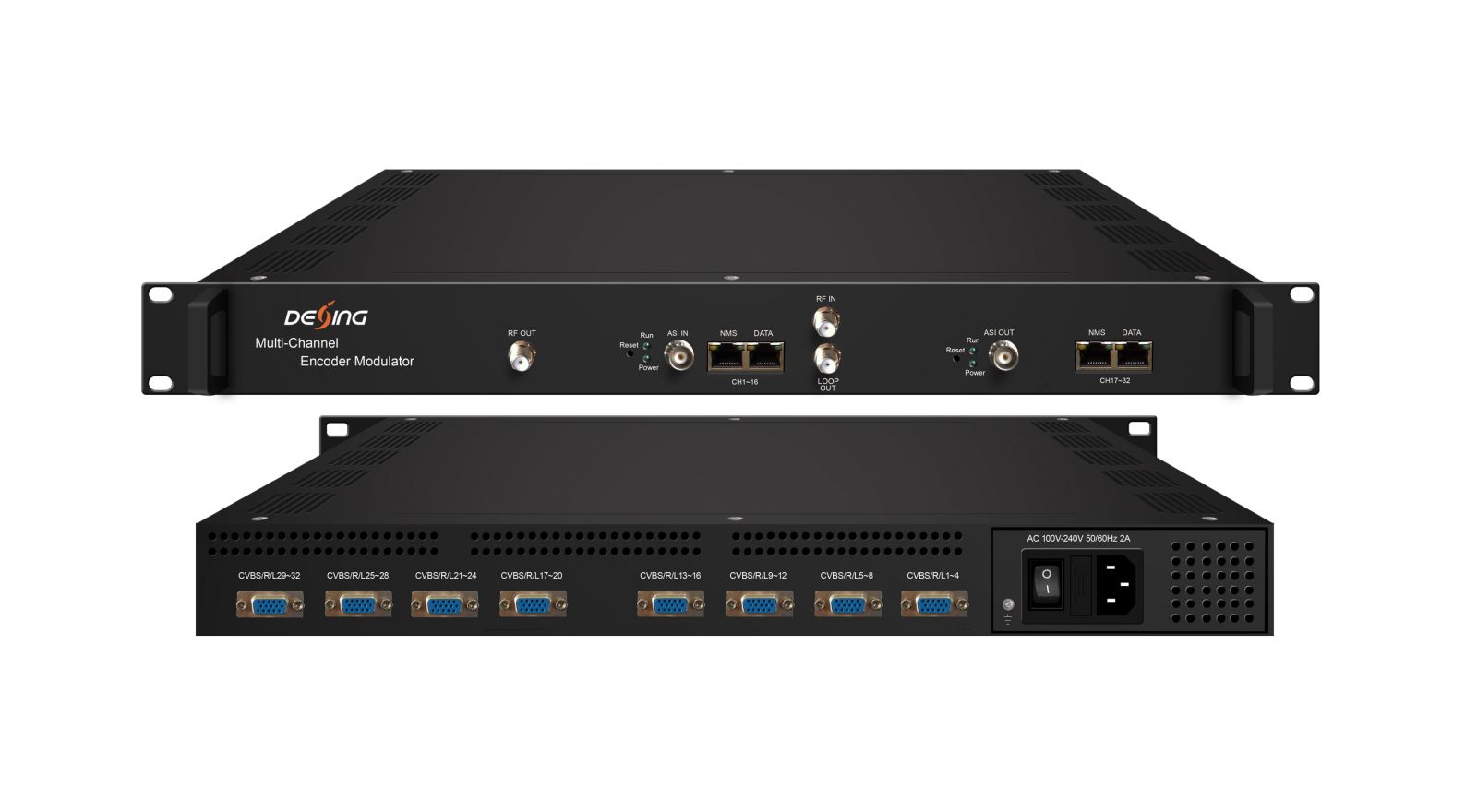

DEXIN DX3532SA is a multi-channel encoder modulator. It integrates encoding, multiplexing and modulating functions in one standard 1U case. Supporting 1 encoding modulating module and 1 encoding module, and both modules accept analog CVBS inputs. After multiplexing the 16 encoded TS (17~32 channels) to the encoding modulating module through 1 ASI port and 1 IP port with one MPTS, and then generating 8 MPTS output through data port.
DX3532SA also supports 1 DVB-C tuner input, 1 ASI and 256 IP input and 8 non-adjacent carriers output through RF output interface and data port output. The device is also characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation DTV broadcasting system.
Key features
* Encoding + Encoding Modulating modules in one case

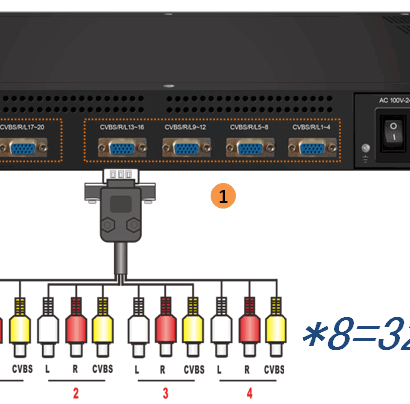

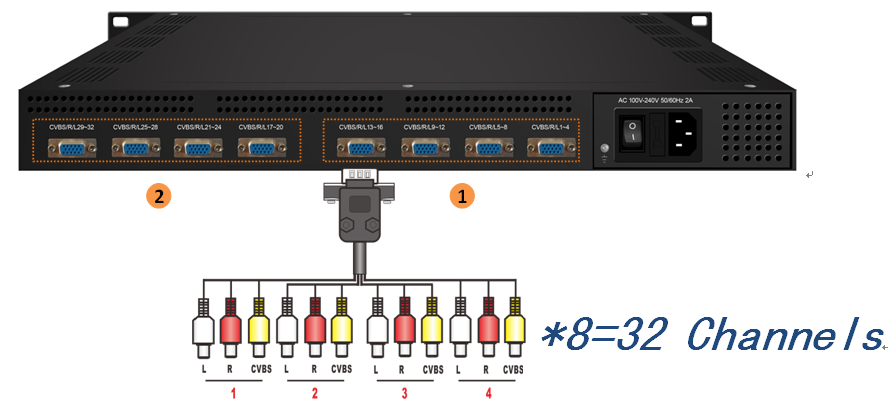

* 32CVBS input with MPEG4 AVC/H.264 Video encoding
* 1DVB-C Tuner input and 1 ASI input for re-Mux
* 256 IP input over UDP and RTP
* Support MPEG1 Layer II Audio encoding and support audio gain adjustment
* Support PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting
* Support 8*Mux-SCR-DVBC output/ 8*Mux-DVBT output
* Support 8 MPTS IP output over UDP and RTP
* Support Logo, Caption and QR Code insertion (Language Supported: 中文, English, العربية, ไทย,
, for more languages please consult us…)
* Support Null PKT Filter
* Real-time effective encoding output bit-rate monitoring
* Control via web management, and easy updates via web
