DX3214B Multi-Channel Encoder

Product Overview

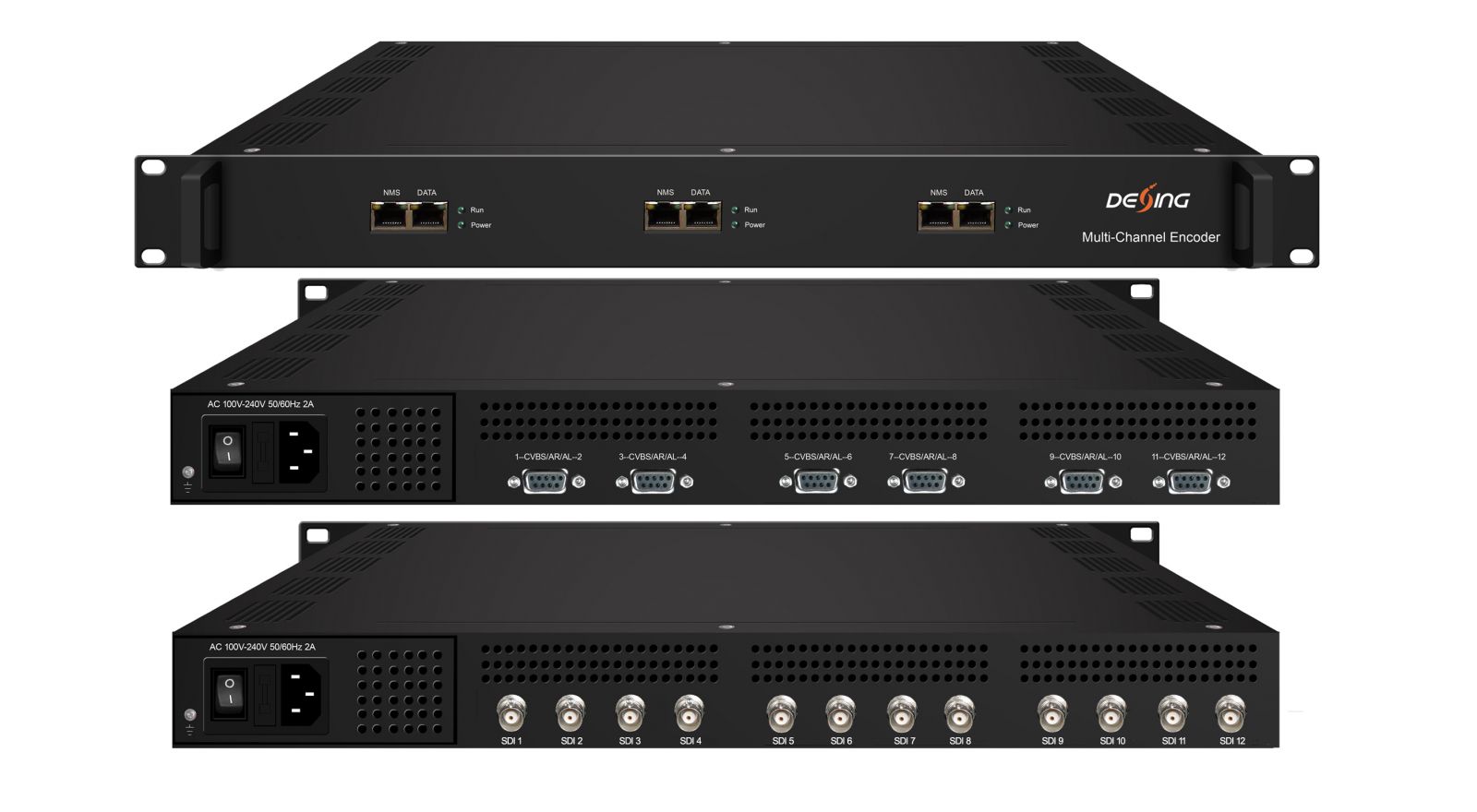

DEXIN DX3214B multi-channel encoder is our newest professional SD audio & video encoding and multiplexing device with powerful functionality. It is equipped with 4/8/12 CVBS or SDI channels input supporting MPEG-2, MPEG4 AVC/H.264. It can multiplex the encoded TS to generate IP output through GE output port. It adopts the slot structure with one device supporting maximum 3 DX214B encoder modules. Each module can work standalone. In conclusion, its high integration and cost-effective design make this device widely used in variety of digital distribution systems such as CATV digital head-end and terrestrial digital TV, etc.

Key Features

        *  Modular design, 1U chassis support up to 3 modules

        *  4/8/12×CVBS or SDI video inputs with MPEG-2 and MPEG4 AVC/H.264 Video encoding

        *  Supports PAL and NTSC SD video formats (Only for CVBS input)

        *  Support MPEG1 Layer 2, LC-AAC, HE-AAC and support audio gain adjustment

        *  Support IP output over UDP and RTP/RTSP

        *  support Null PKT Filter

        *  Support Logo, Caption, QR Code insertion

            (Language Supported: 中文, English, اردو, for more languages please consult us…)

        *  Control via web management, and easy updates via web
