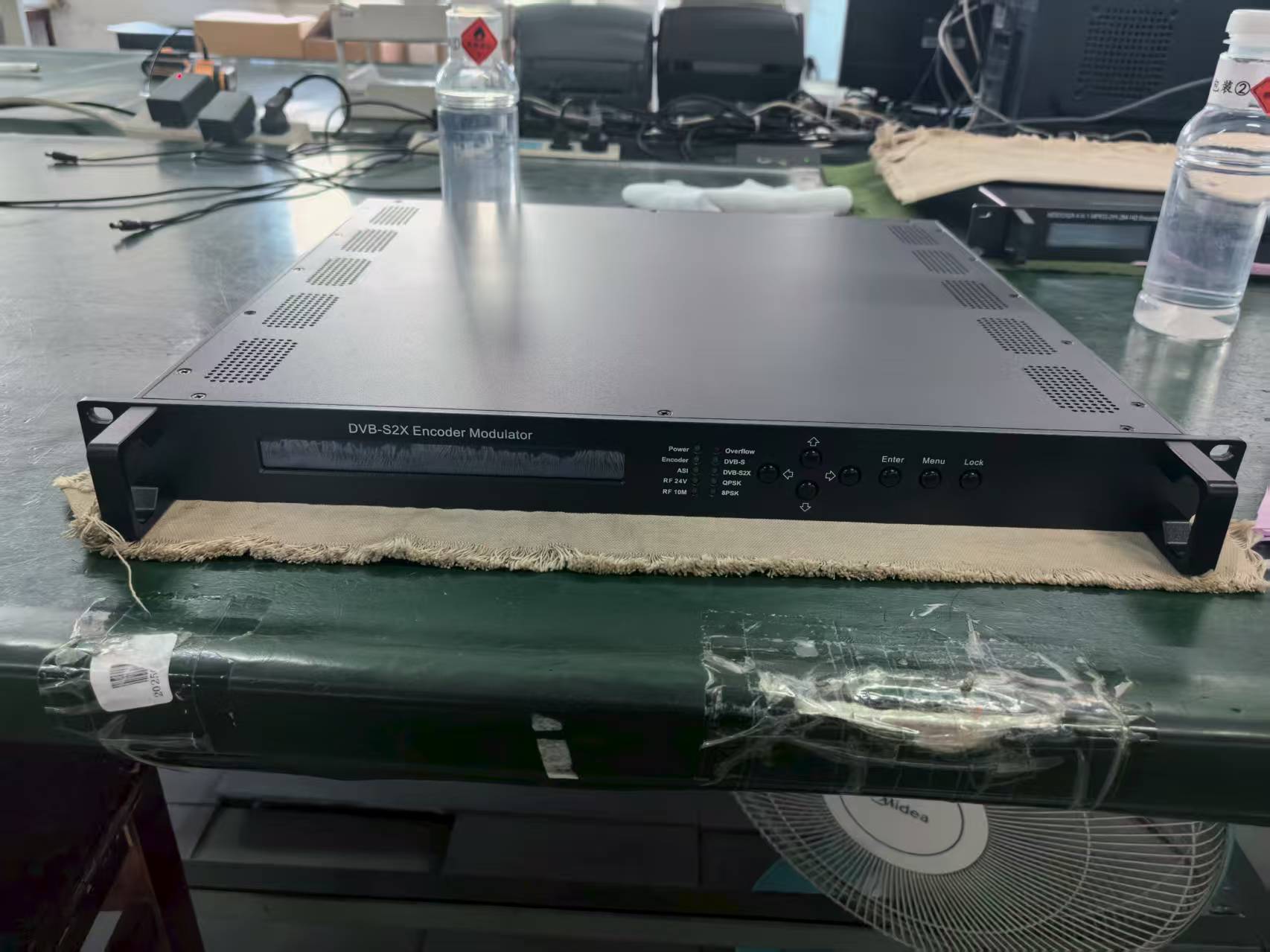

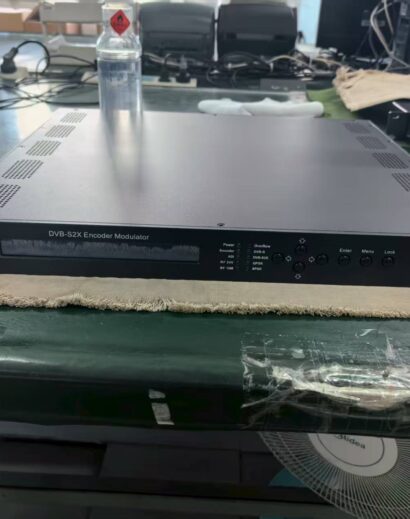

DVB-S2X Encoder Modulator

DVB-S/S2/S2X Encoder & Modulator is an integrated device with multifunction. Its pluggabledesignmakes it convenient to change encoding module (SDI/HDMI/YPbPr/…) as needed. It is alsoequippedwith 1ASI input for re-mux and modulation. The signal source could be from CCTV cameras, Blue-ray players and etc. It adopts user-friendlyweb-based operation interface to effectively manage the device and carefully protect your content withits BISS function. Featured with its high performance and low cost, DVB-S/S2/S2XEncoder&Modulator is especially adequate for the TV station or DSNG system to encode SD/HDprogramsandoutput to uplink.

FEATURE:

 MPEG4/H.264 SD/HD Encoding Module

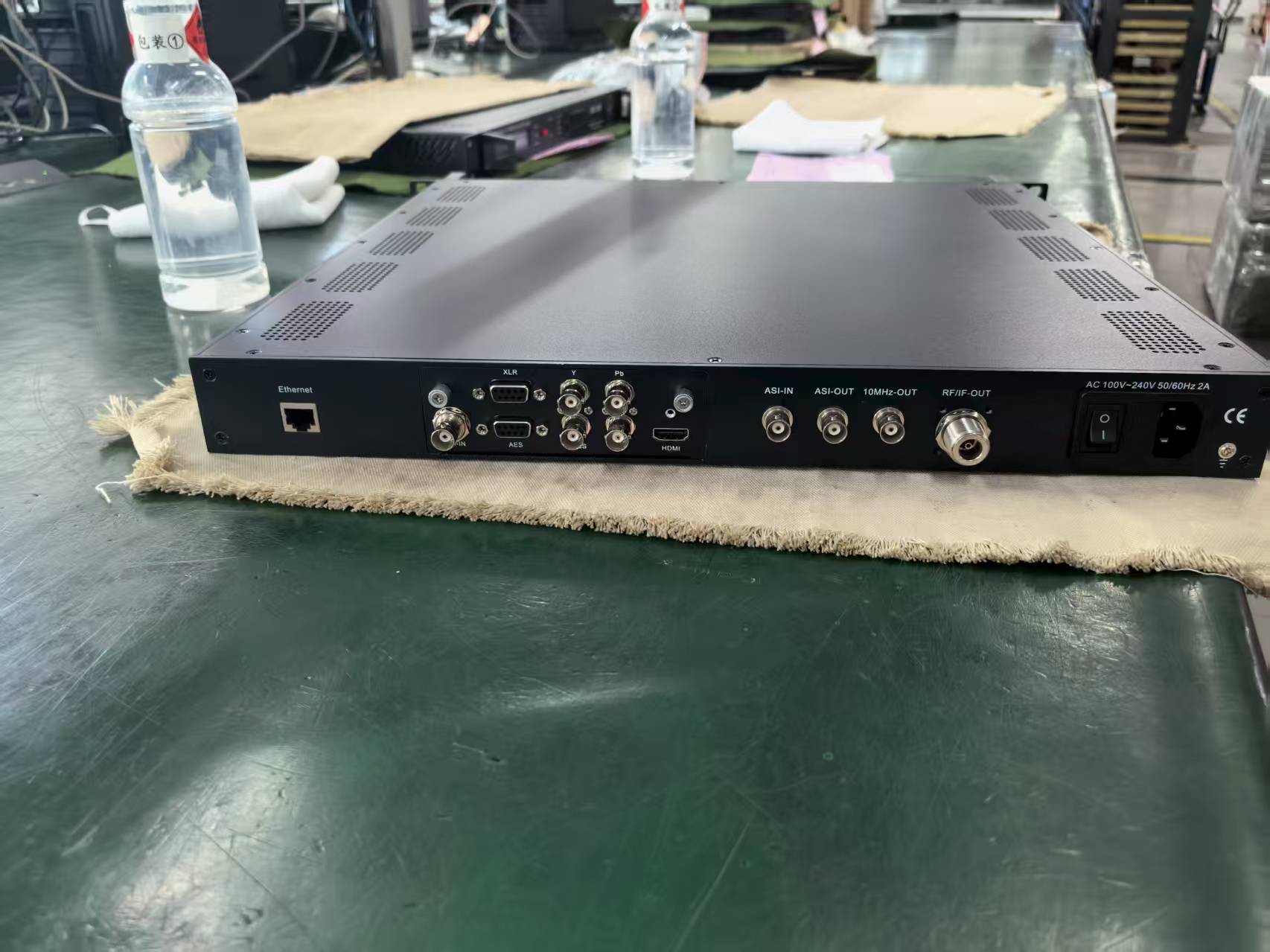

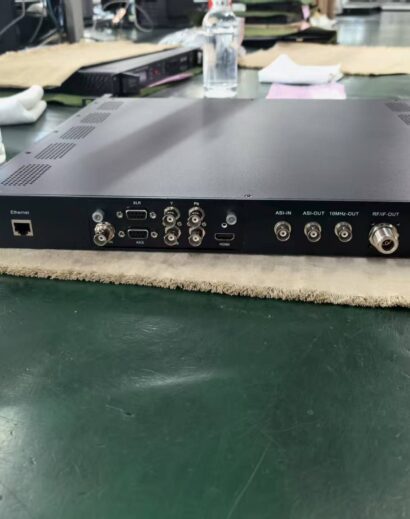

 SDI/HDMI/YPbPr/…in &1*ASI in
 Multiple channel audio inputs optional
 Support DVB-S/S2/S2XRF output (950-2150MHz) and ASI output
 QPSK,8PSK, 8APSK, 16APSK, 32APSK Constellations
 Support RF CID setting
 Support RF 24V power output
 Support Low latency
 Support BISS fucntion
 Support 10MHz reference clock
 Support Web NMS and front panel LCD &Keyboard control
 Upgrade device through web NMS
