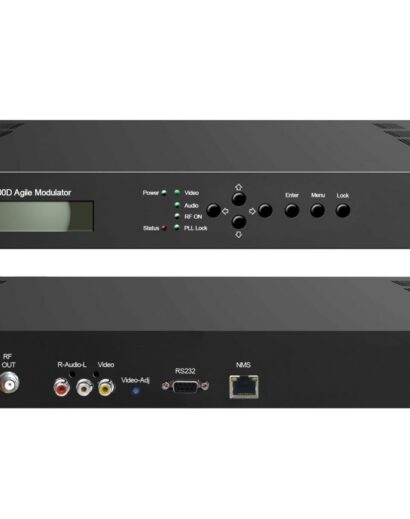

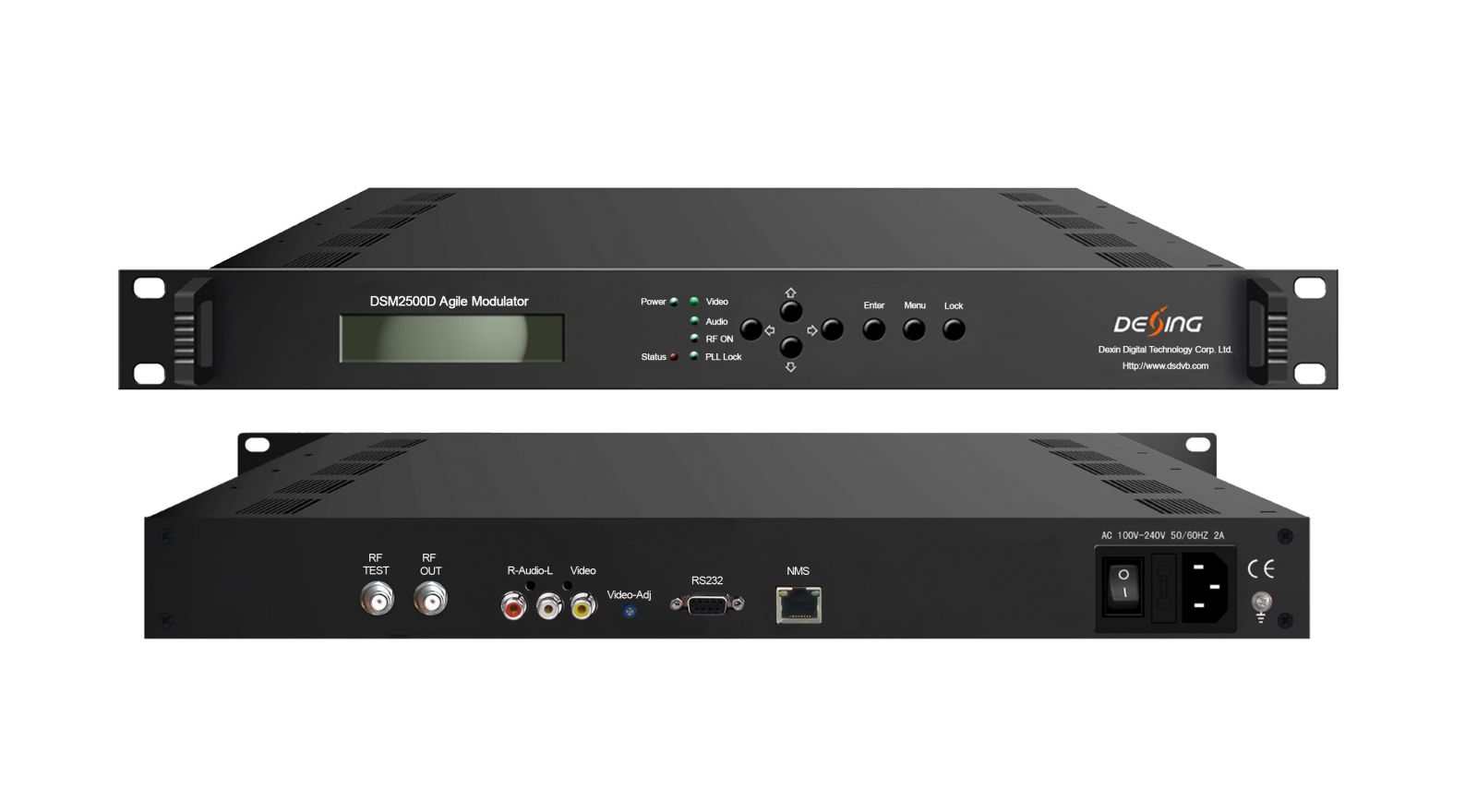

DSM2500D Agile Modulator

Outline

DSM2500D is a cost-effective agile modulator designed by Dexin. It has 1 audio (L/R) and 1 video (CVBS) input. It gives 1 RF out (47~870MHz) through the RF output interface, and the output frequency is configurable. Audio and video source can be from satellite receiver, TV camera etc. With the features of low cost high performance, DSM2500D is very adaptable to hotel, community and entertainment spot.

Key Features

*  Support 1* audio (L/R) and 1*video (CVBS) input

*  Support 1*RF output, and 1 RF test port

*  RF output frequency range: 47~870MHz in 1 kHz step, output frequency is configurable

*  Video input AGC function

*  TV System standard: PAL B/G, PAL D/K NTSC, SECAM, etc.

*  Support update online

*  19′ 1U standard structure

*  Keyboard and LCD operation
