Devicewell 20-Ch Video Switcher (Hds9320)

A dedicated switcher for broadcast, TV and studios, it is the first choice for large-scale live broadcasts. The
twenty-channel switcher integrates multiple control methods. Special effects and transition methods can be set through
the keyboard. The built-in menu display function can set up the equipment more intuitively and efficiently. The joystick
can control the distance and distance of the camera.

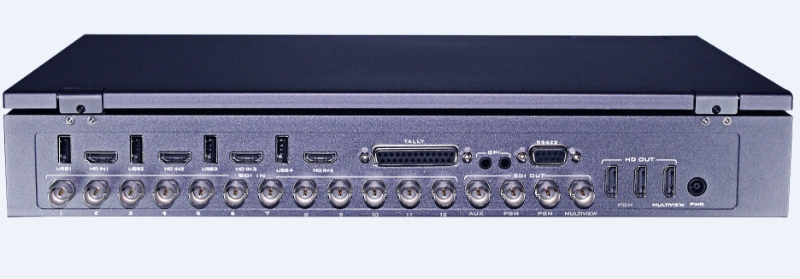

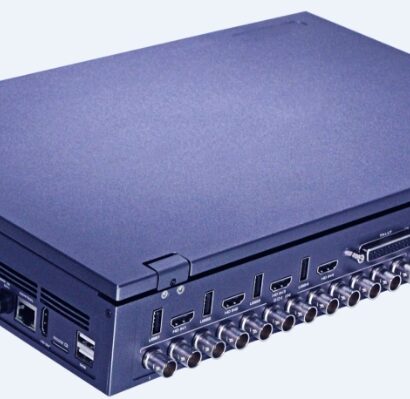

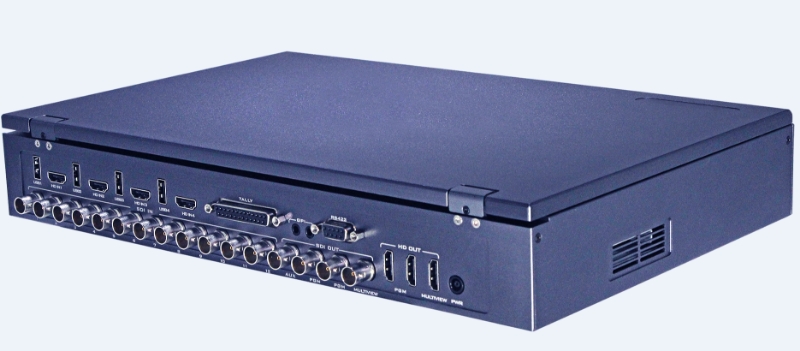

The twenty-channel switcher is a switcher with 12 SDI inputs + 4 FHD + 4 USB video signal inputs, a total of 20
input signals, 4 SDI outputs, and 4 FHD output broadcast-grade video signals. The twenty-channel switcher is suitable
for live performances, course recordings, and studio directing, etc. The switcher has a variety of functions. Such as
multi-format video input with adaptive input resolution, analog balanced audio input and output, audio embedding and
deembedding, mixing, TALLY, TF card recording, network port streaming, keying, RS422 and RJ45 control, etc. You
can add LOGO, station logo, background animation and other materials through USB playback. With remote upgrade
capabilities, users can perform video switching and audio mixing functions with additional effects through simple
operations.

FEATURE:

 Metal aluminum alloy material, high
strength and light weight
 Separate PATTERN KEY, various special
shapes can be set. Pattern, image position,
size and quantity can be adjusted. Round,
rhombus, fan-shaped, plum blossom,
blinds, etc.
 Hundreds of special effects wipes
 Support joystick and camera control

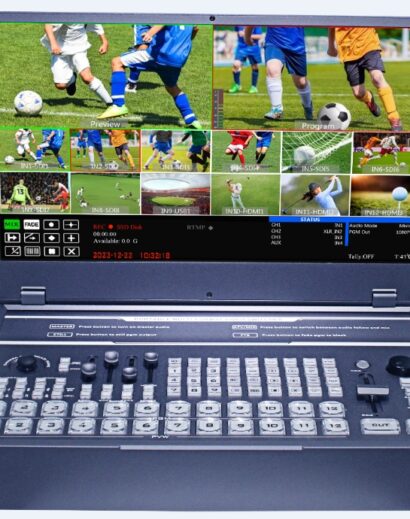

 Industrial-grade mechanical buttons,
professional-grade feel

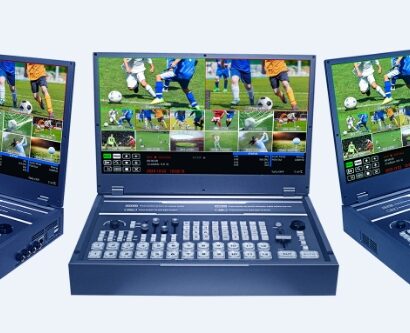

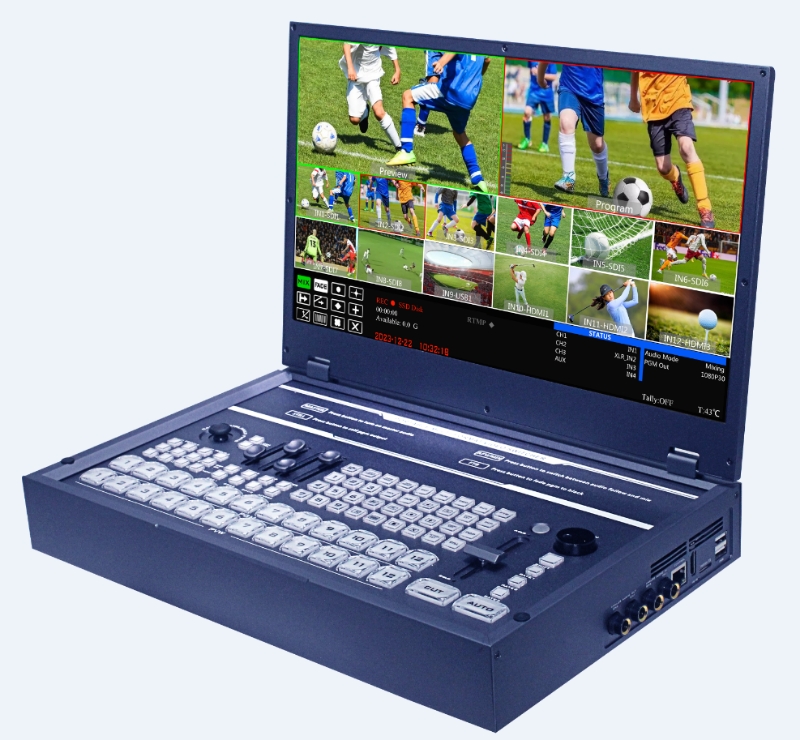

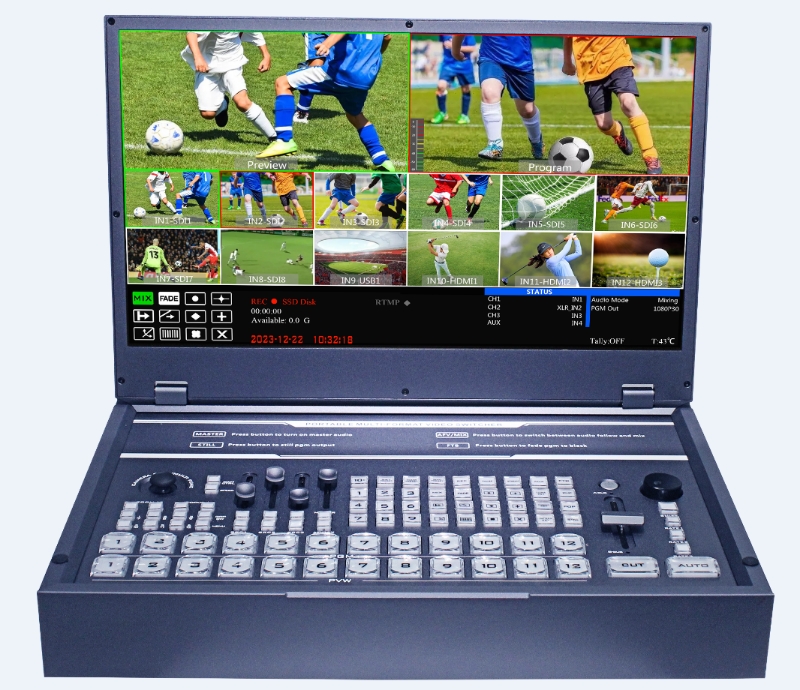

 Comes with 15.6-inch LCD screen
 Support RJ45 remote control
 Support DCB control
 Broadcast & TV standard tally interface
 Support GPI control
 Support network port push streaming
 Support inputs such as foot pedals and
control handles
 Support 12-CH SDI+4-CH FHD+4-CH
USB material input
 MULTIVIEW output: 1 FHD + 1 SDI
 PGM output: 3-CH FHD+2-CH SDI
 Support 1 AUX custom output
 Support TF card recording

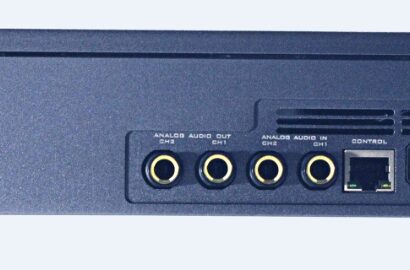

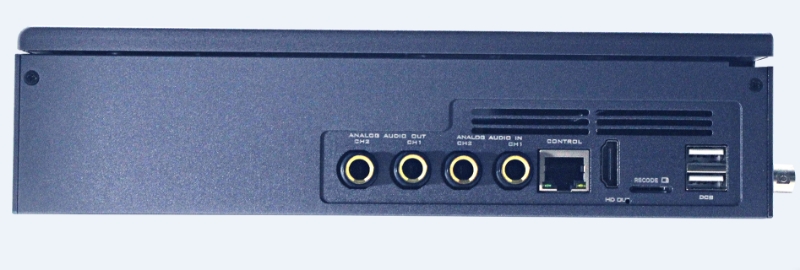

 2-CH TRS output/ input
 Support USB3.0 UVC out
 Audio following and mixing functions
 Support SDI/FHD audio de-embedding
 MIX /FADE and other special effects
switching
 CUT and AUTO special effects transition
 Color bar output
 STILL: one-click screen freezing function
 FTB emergency blackout function
 PIP/POP function
 Chroma key and Luma key functions
 Station logo and graphic and text overlay
